Controller Test

WARNING: This page is about a different car, the 2003 Acura 3.2TL. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the dashboard lower cover .
  2. Disconnect the 6P connector from the controller.

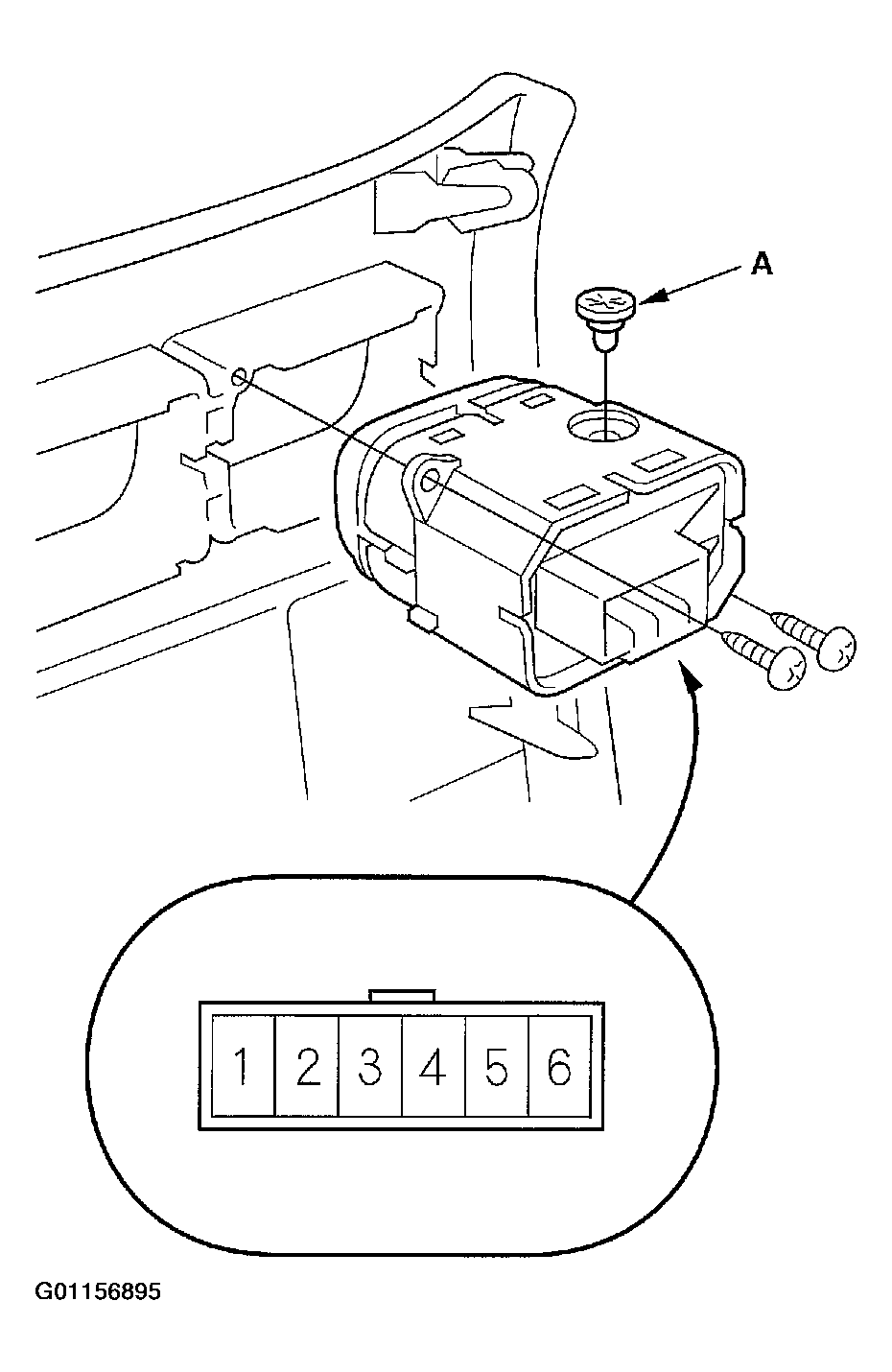

    Fig 1: Disconnecting Connector From The Controller
    G01156895Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Measure resistance between the No. 4 and No. 5 terminals while rotating the adjusting dial. Resistance should vary from 0 to 20K ohms as the dial is rotated.
  4. If necessary, check the illumination bulb (A).
