Ignition Key Light Test
WARNING: This page is about a different car, the 2003 Acura 3.2TL. However, it is still accessible from the selected car via links, so may be relevant.

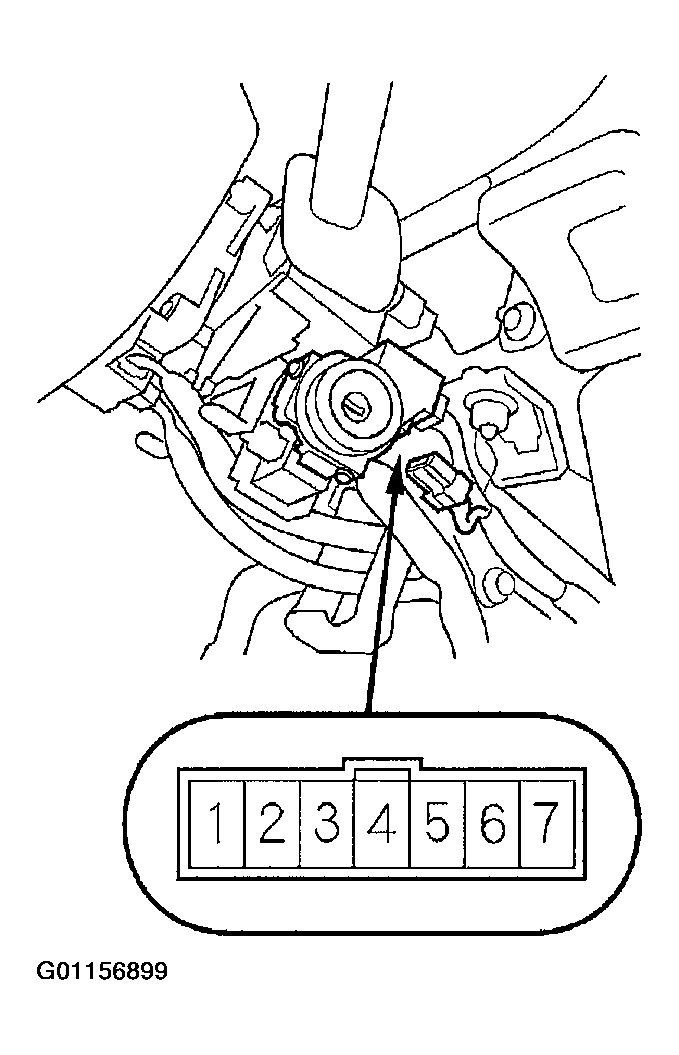

- Remove the steering column upper and lower covers .
- Disconnect the 7P connector.
- The LED should come on when power is connected to the No. 7 terminal and ground is connected to No. 6 terminal.
- If the LED does not come on, replace the ignition key switch.
