Console Box Light Replacement

WARNING: This page is about a different car, the 2003 Acura 3.2TL. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear console .
Disconnect the 3P connector from the rear accessory socket sub-harness.
Remove the beverageholder cover from the center console.
Turn the bulb socket 45° counterclockwise from the light housing, then remove the bulb (A).

Console Box Light: 3.8W

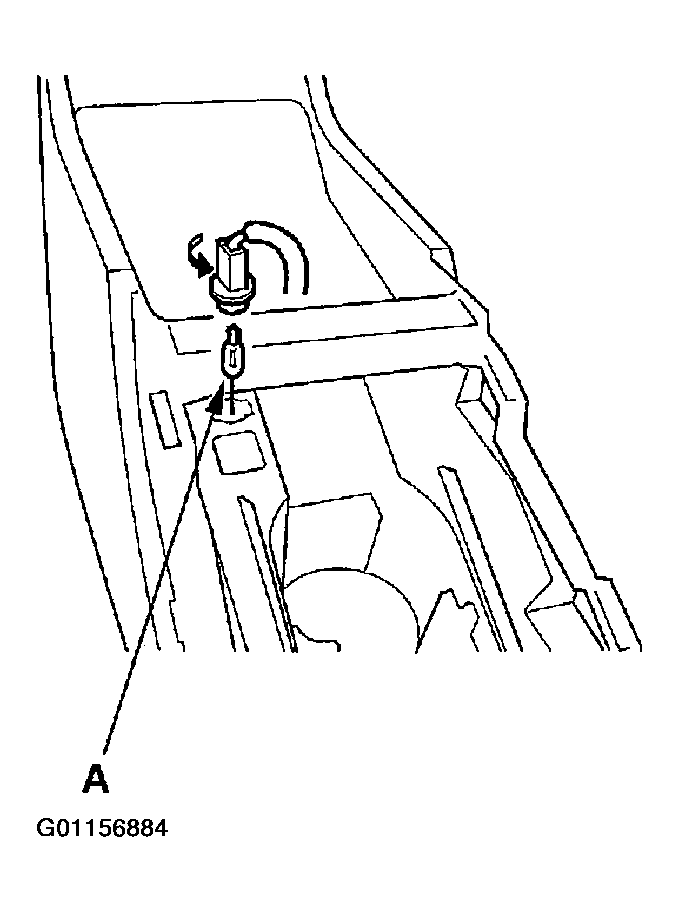

Fig 1: Removing Bulb

Courtesy of AMERICAN HONDA MOTOR CO., INC.
