Console Box Light Replacement

WARNING: This page is about a different car, the 2003 Acura 3.2CL, 2002 Acura 3.2CL, and 2001 Acura 3.2CL. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear console .
  2. Disconnect the 3P connector from the rear accessory socket sub-harness.
  3. Remove the cupholder cover from the center console.
  4. Turn the bulb socket 45 counterclockwise from the light housing, then replace the bulb (A).

    CONSOLE BOX LIGHT:  2CP

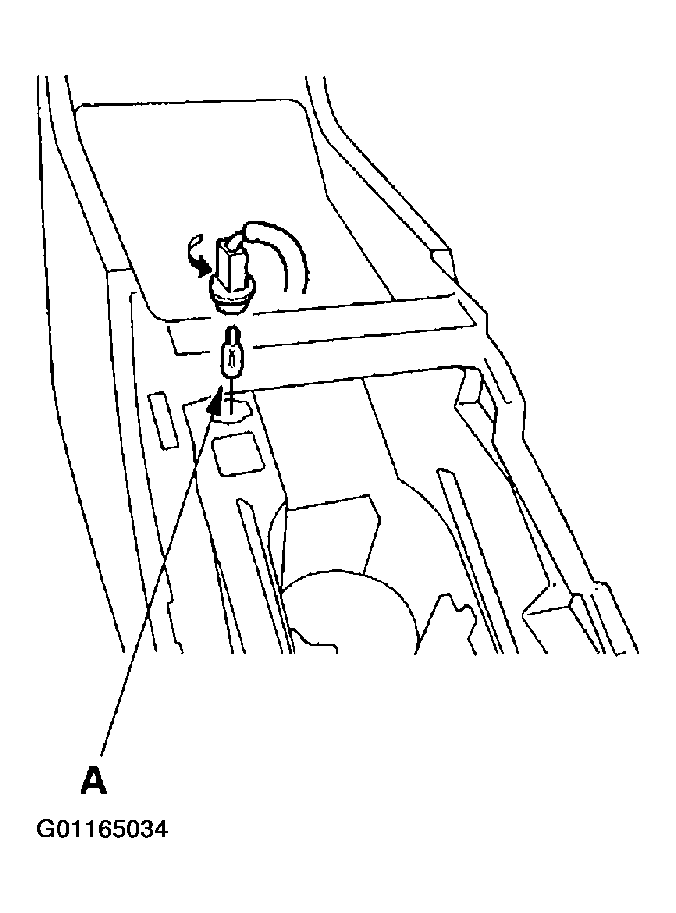

    Fig 1: Removing Console Box Light
    G01165034Courtesy of AMERICAN HONDA MOTOR CO., INC.
