Powertrain Control Module (PCM) Connector End View
Powertrain Control Module (PCM) Connector End View

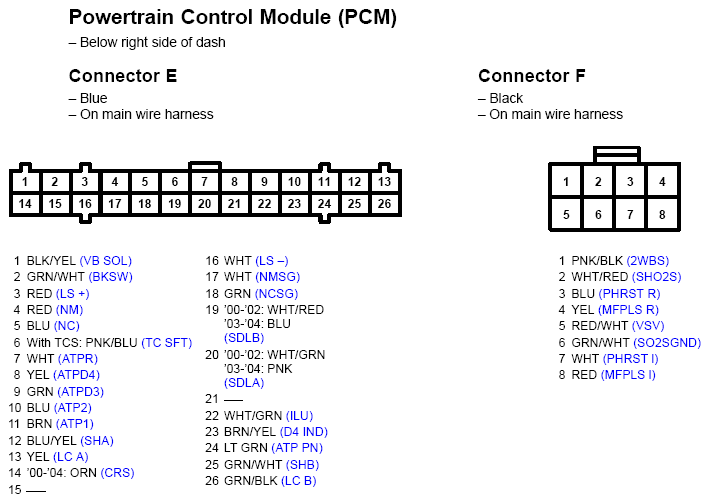

Fig 1: Powertrain Control Module (PCM) Connector End View (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

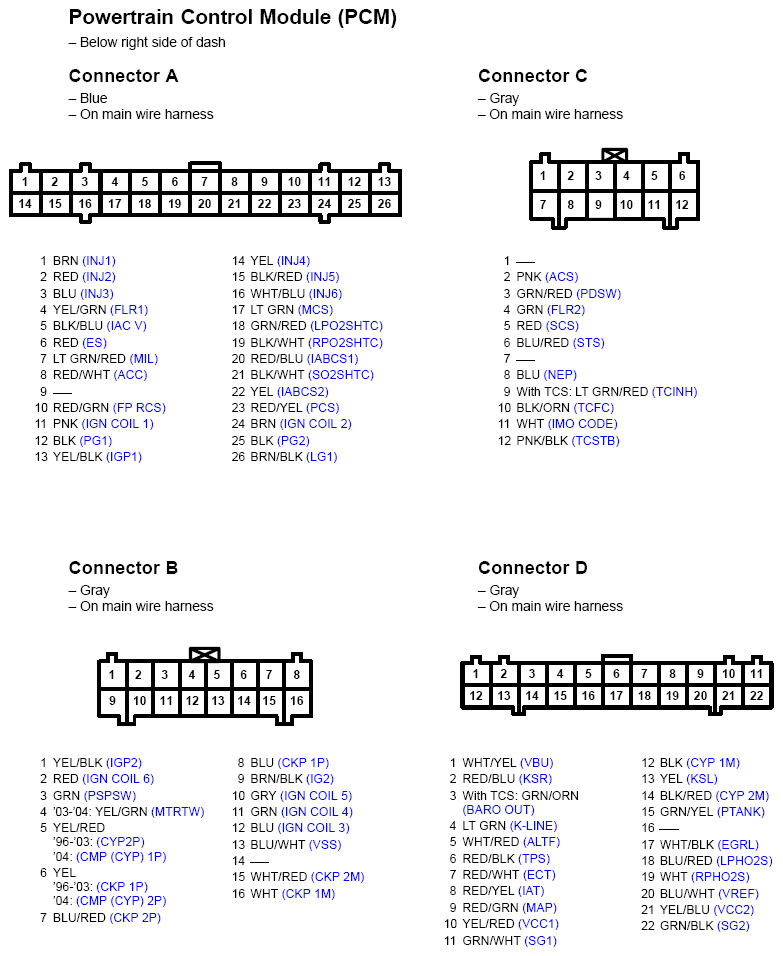

Fig 2: Powertrain Control Module (PCM) Connector End View (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
