VSA Modulator Control Unit ('00-'04) Connector End View
VSA Modulator Control Unit ('00-'04) Connector End View

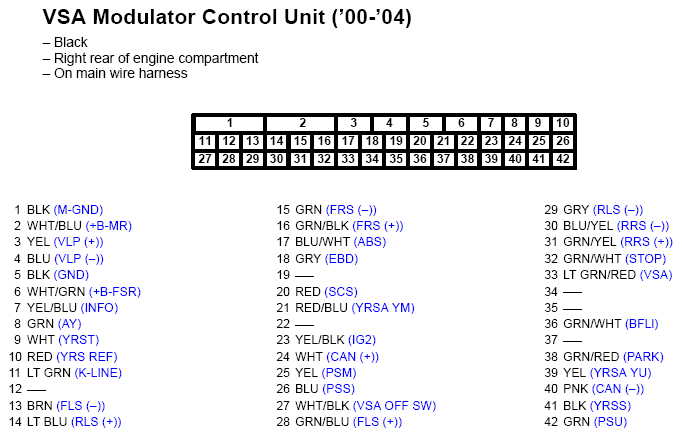

Fig 1: VSA Modulator Control Unit ('00-'04) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
