Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Component Location |
|---|---|

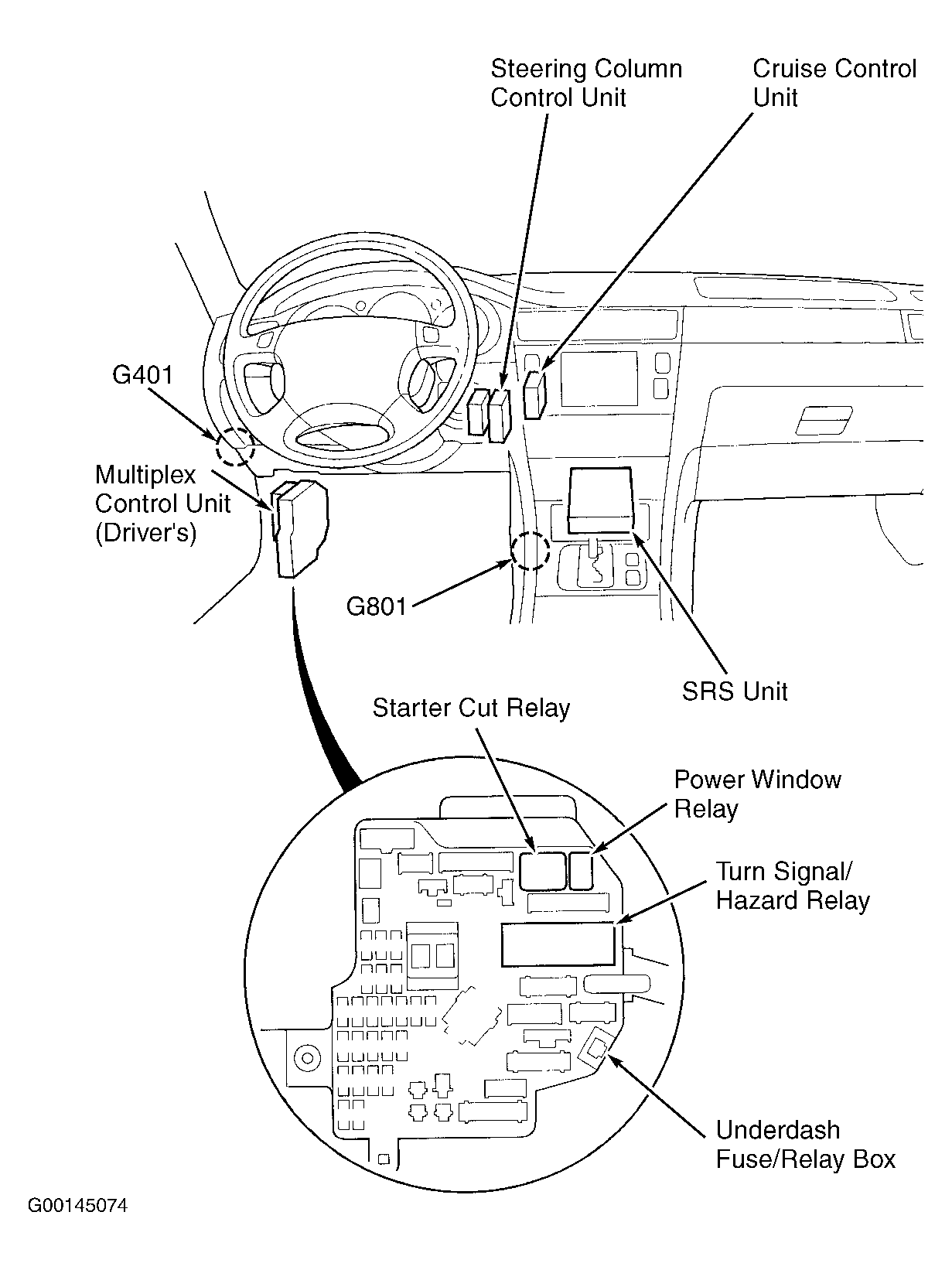

| Underdash Fuse/Relay Box | Behind left kick panel. See Figure . |
| Underhood Fuse/Relay Box | On left side of engine compartment. See Figure . |

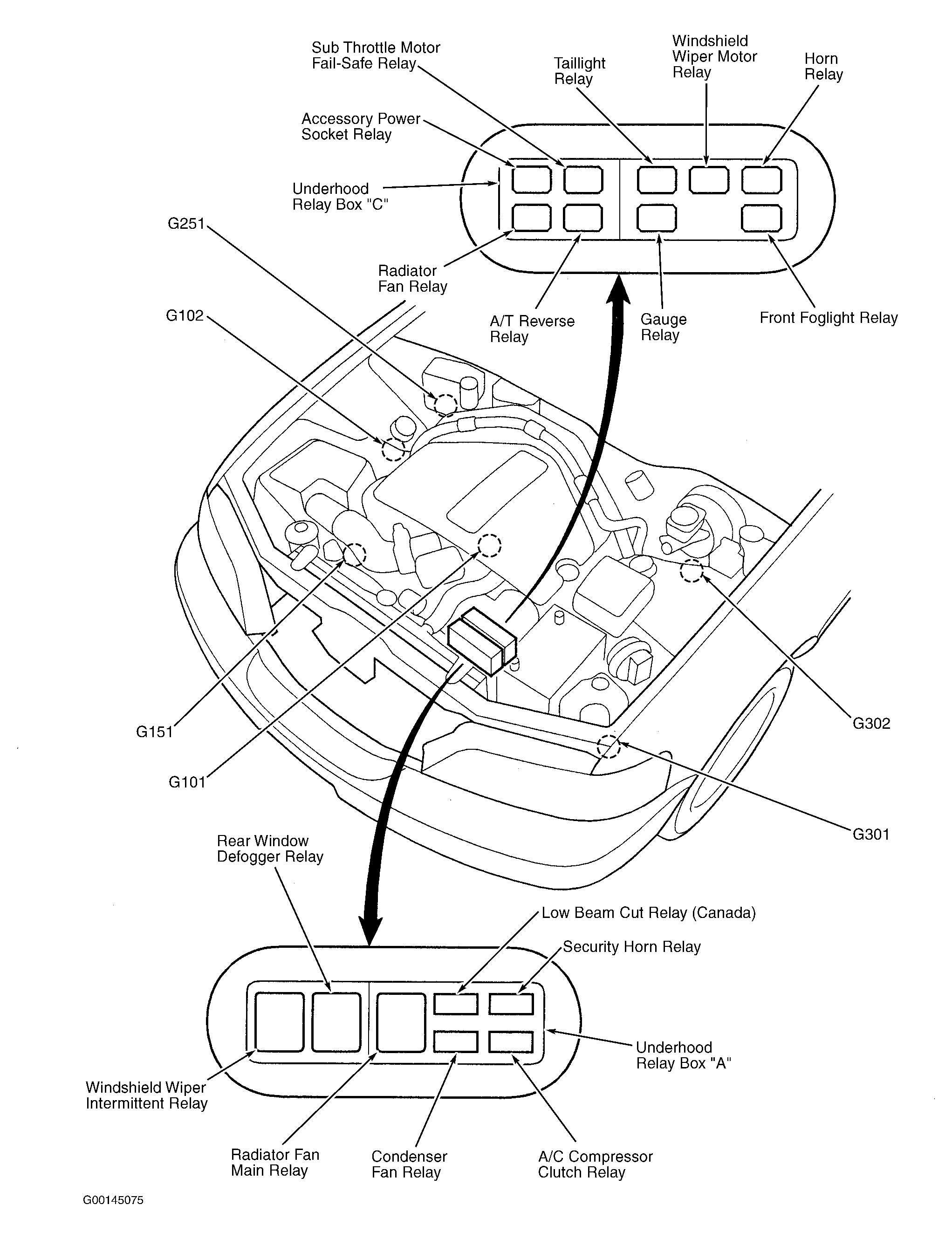

| Underhood Relay Box "A" | On left front of engine compartment. See Figure . |

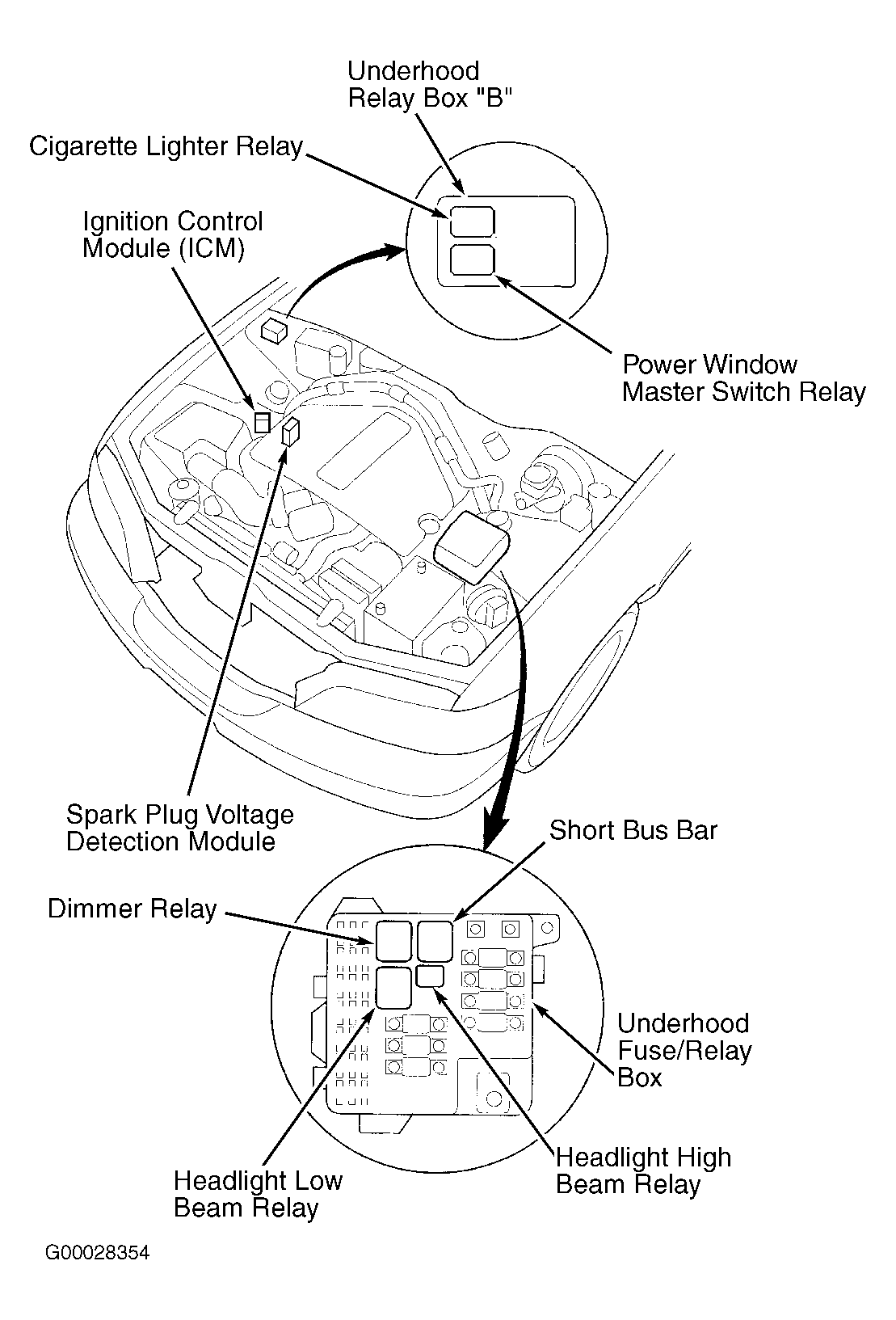

| Underhood Relay Box "B" | On right rear corner of engine compartment. See Figure . |
| Underhood Relay Box "C" | On left front of engine compartment. See Figure . |
