Connector Identification

NOTE: PCM is located on right side of vehicle, under footwell carpet.

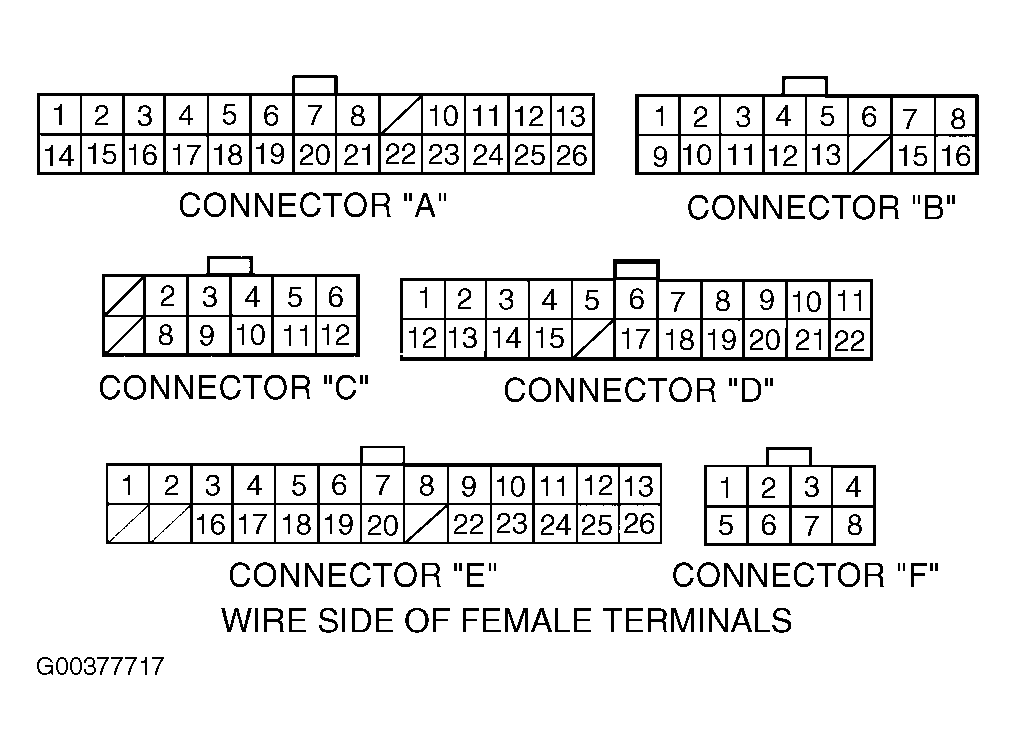

Fig 1: Identifying PCM Connectors & Terminals (2001-02 3.5RL)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

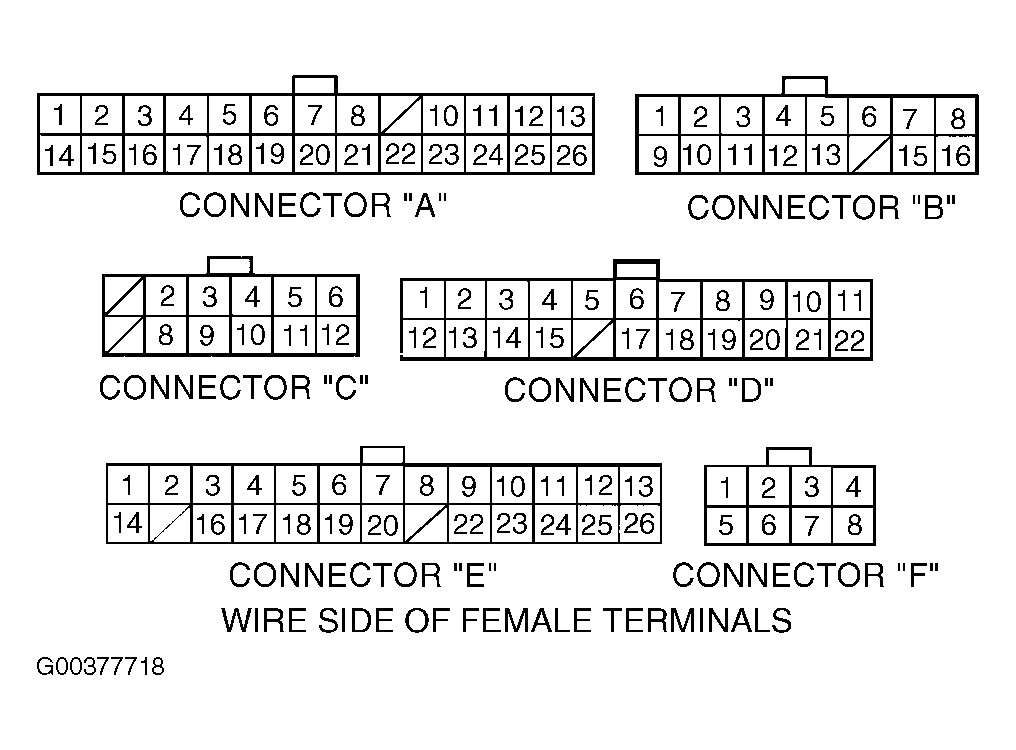

Fig 2: Identifying PCM Connectors & Terminals (2003 3.5RL)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

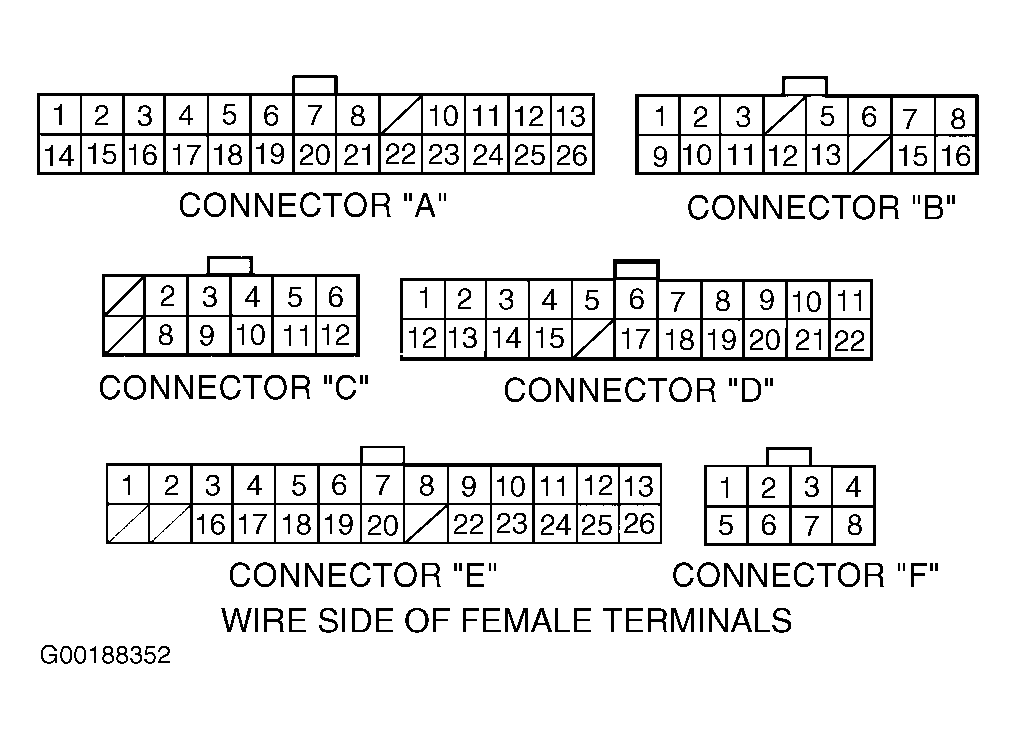

Fig 3: Identifying PCM Connectors & Terminals (2004 3.5RL)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
