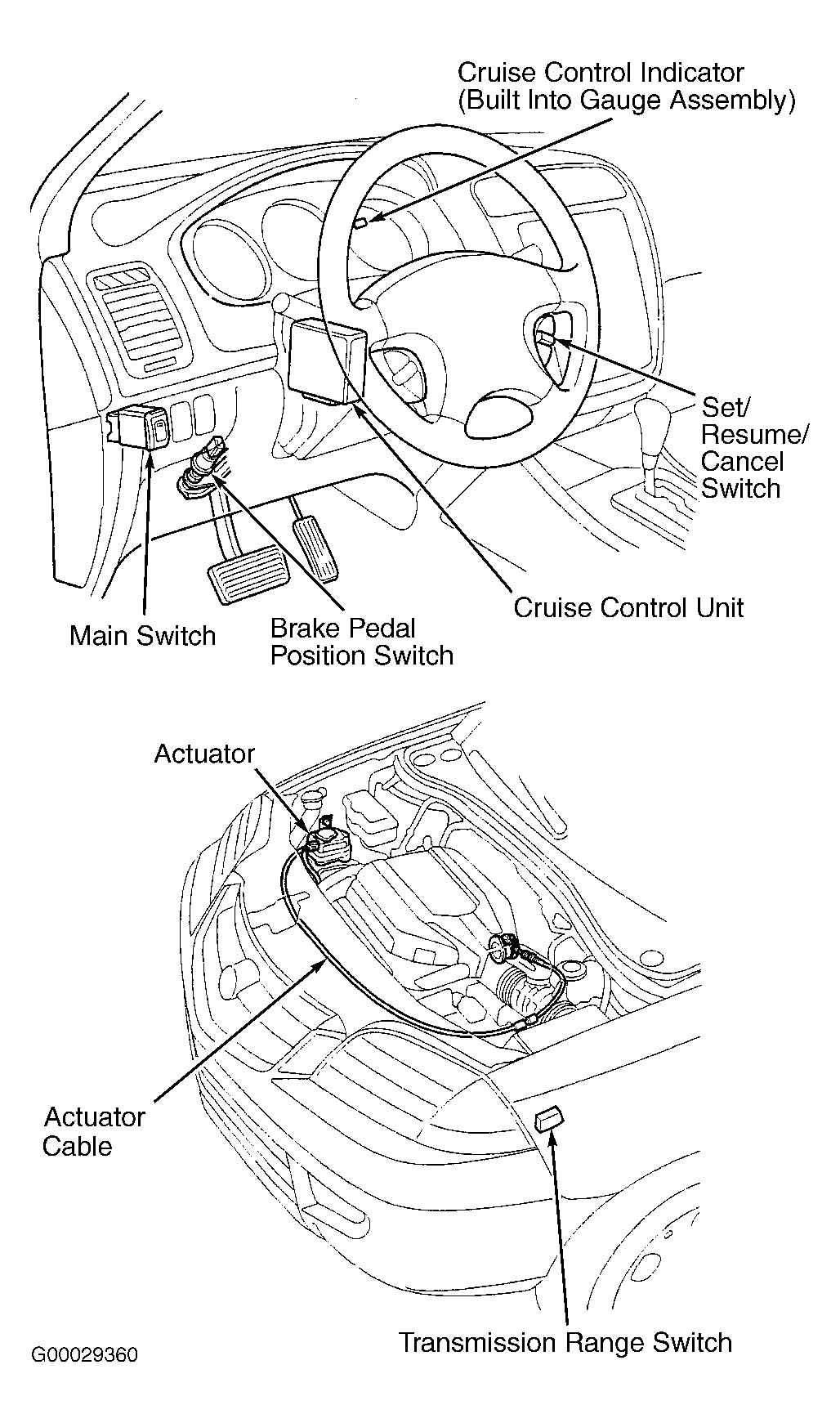

Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Actuator Assembly | Right Side Of Engine Compartment |
| Brake Switch | On Bracket, Above Brake Pedal |
| Cruise Control Unit | Right Of Steering Column |
| Driver's Underdash Fuse/Relay Box | Behind Left Kick Panel |
| Gear Position Switch (A/T) | Mounted On Back Of Transaxle |
| Ground (G101) | Left Side Of Engine, By Thermostat Housing |
| Ground (G201) | Right Front Corner Of Engine Compartment |
| Ground (G401) | Behind Left Side Of Dashboard |
| Ground (G501) | Under Left Side Of Dashboard, Behind Fuse Block |
| Intermediate Connector C201 (16-Pin, Light Blue) | Under Right side Of Dashboard |
| Main Cruise Control Switch | Left Side Of Instrument Panel |
| Powertrain Control Module (PCM) | Under Center Of Dashboard |
| Set/Resume/Cancel Switch | On Steering Wheel |
| Underhood Fuse/Relay Box | Right Side Of Engine Compartment |
