2002-2004 Models
2002-2004 Models

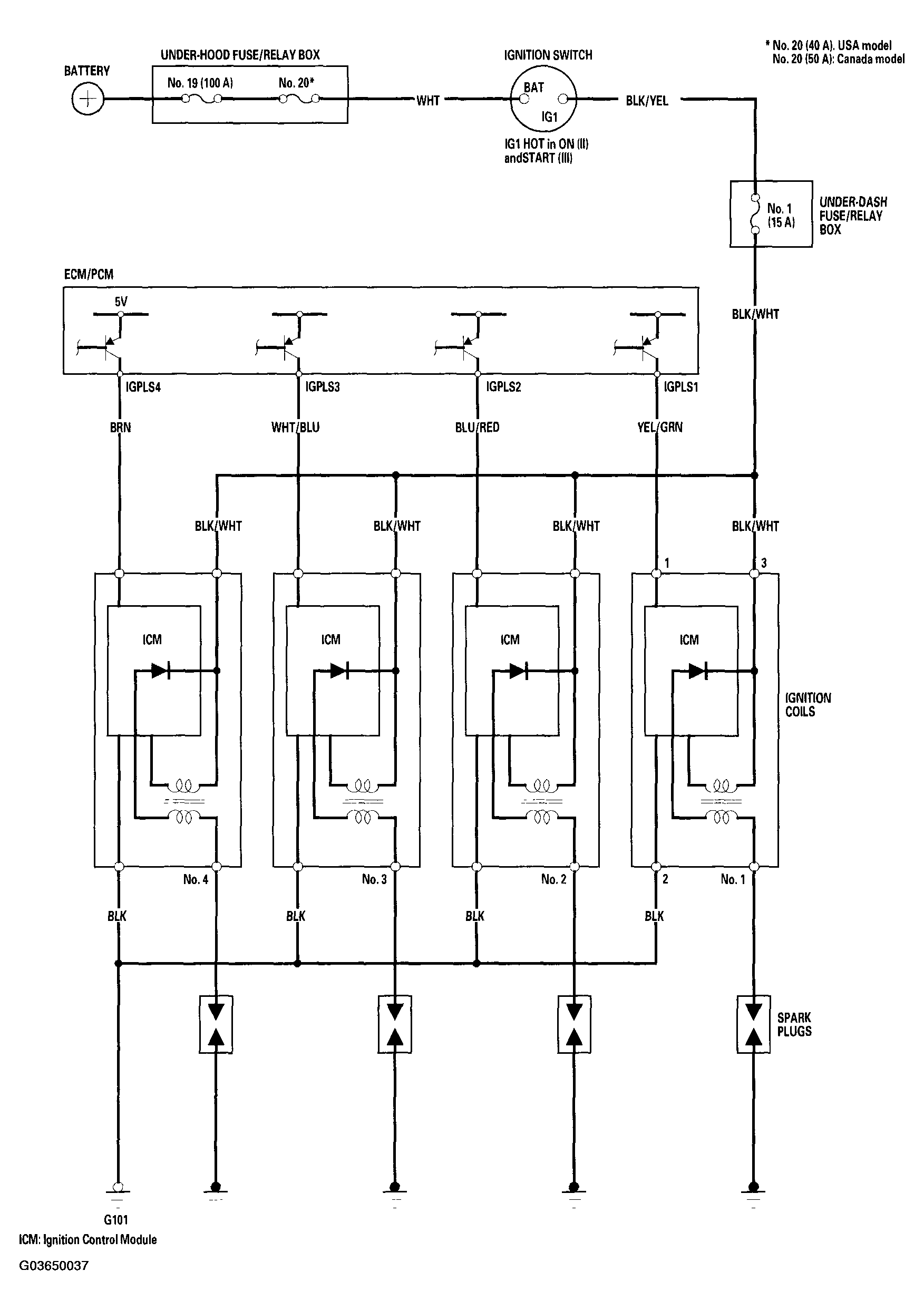

Fig 1: Circuit Diagram Ignition System - 2002-2004 Models
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
