Acura
›
2002
›
RSX Base, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Fuel Supply System
›
Component Location Index
›
K20A2 engine
K20A2 engine

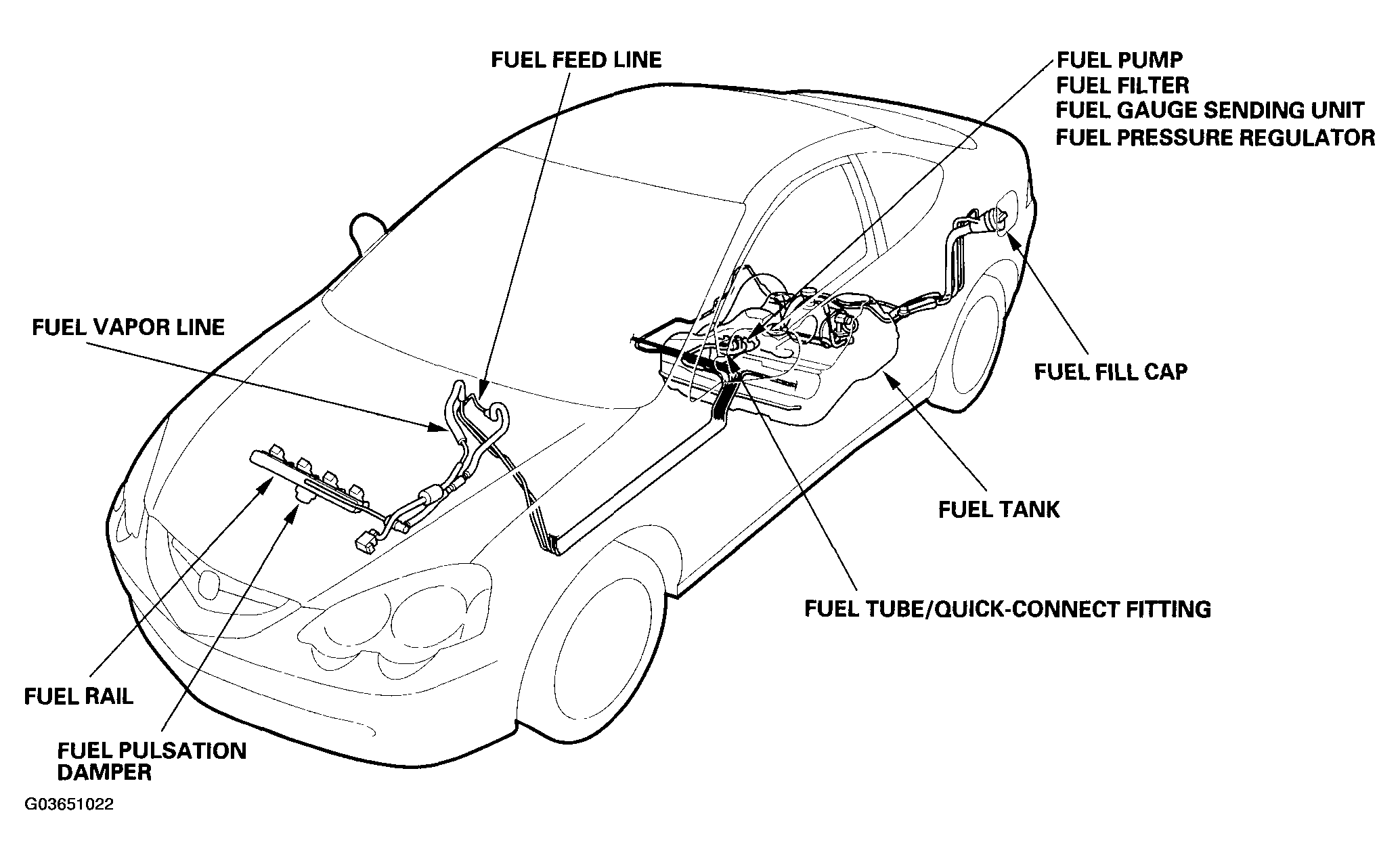

Fig 1: Locating Components Of Fuel Supply System (K20A2 Engine)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
