2002-2004 models

  1. Remove the hoses (A) and the EVAP canister vent shut valve 2P connector (B).

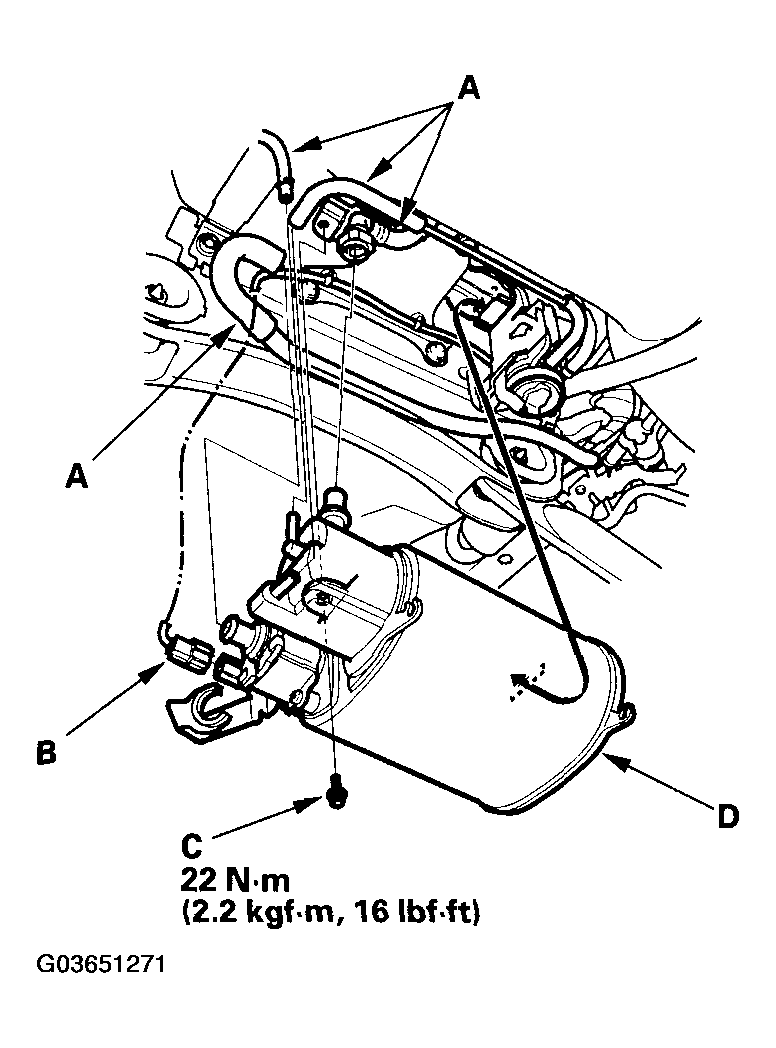

    Fig 1: Removing Fuel Tank Vapor Control Valve And Torque Specifications
    G03651271Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the bolt (C).
  3. Remove the EVAP canister assembly (D).
  4. Install the canister in the reverse order of removal.
