Door Lock Switch Test
- Remove the driver's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).

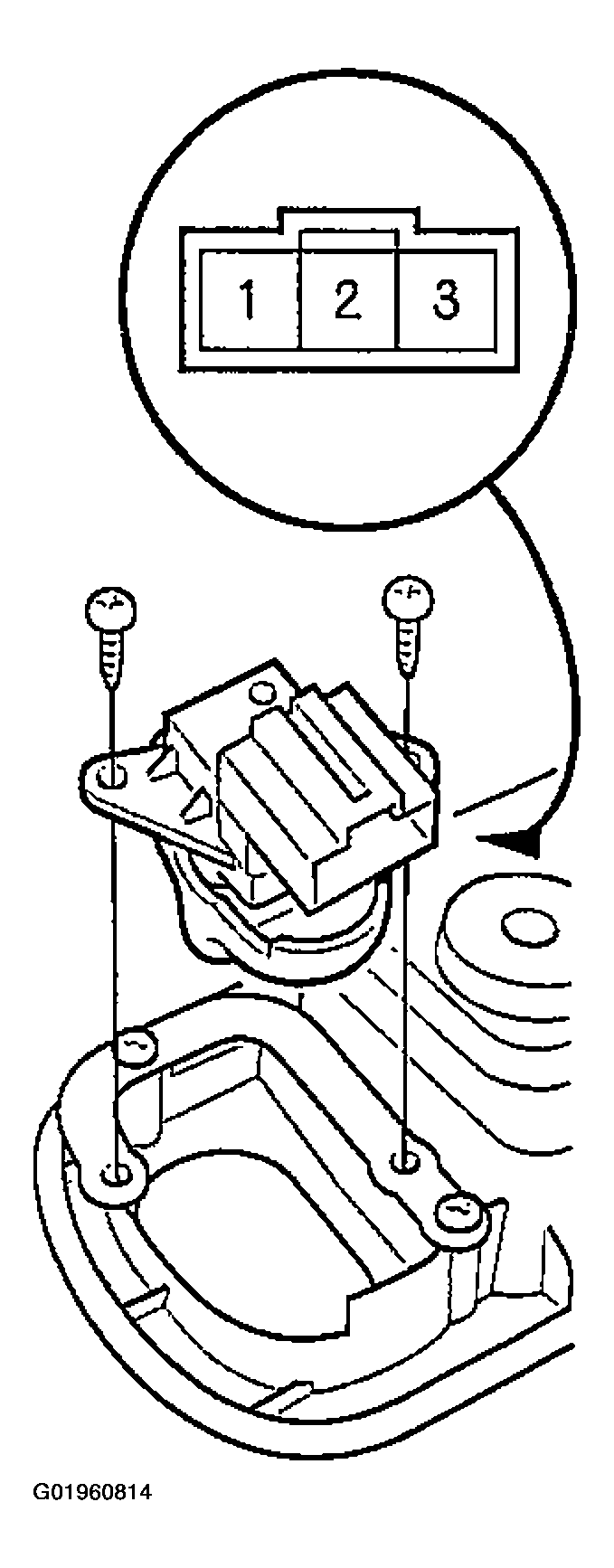

- Remove the two mounting screws and the door lock switch.
- Check for continuity between the terminals.
- There should be continuity between the No. 1 and No. 2 terminals when the door lock switch is in the LOCKED position.
- There should be continuity between the No. 2 and No. 3 terminals when the door lock switch is in the UNLOCKED position.
