Trunk Security Latch Switch Test

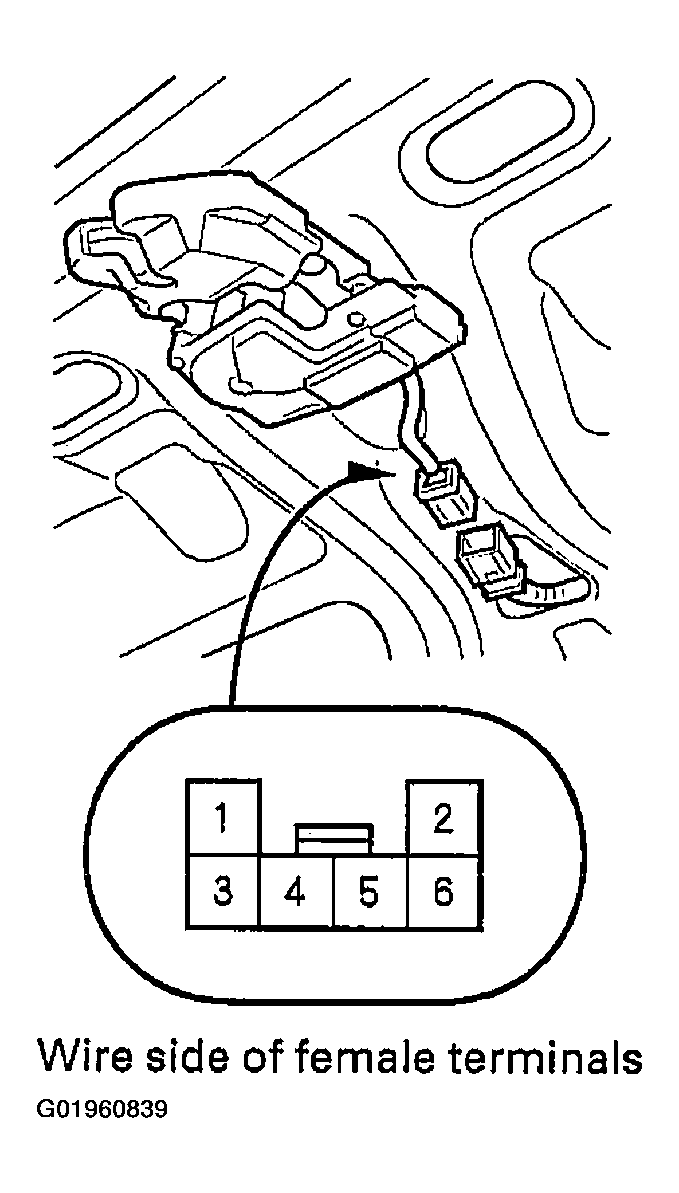

- Open the trunk lid and disconnect the 6P connector (A) from the trunk lid opener solenoid/latch switch (B).
- Check for continuity between the terminals in each switch position.
- There should be continuity between the No. 1 and No. 3 terminals when the trunk lid is opened.
- There should be no continuity between the No. 1 and No. 3 terminals when the trunk lid is closed.
