DTC Troubleshooting Index

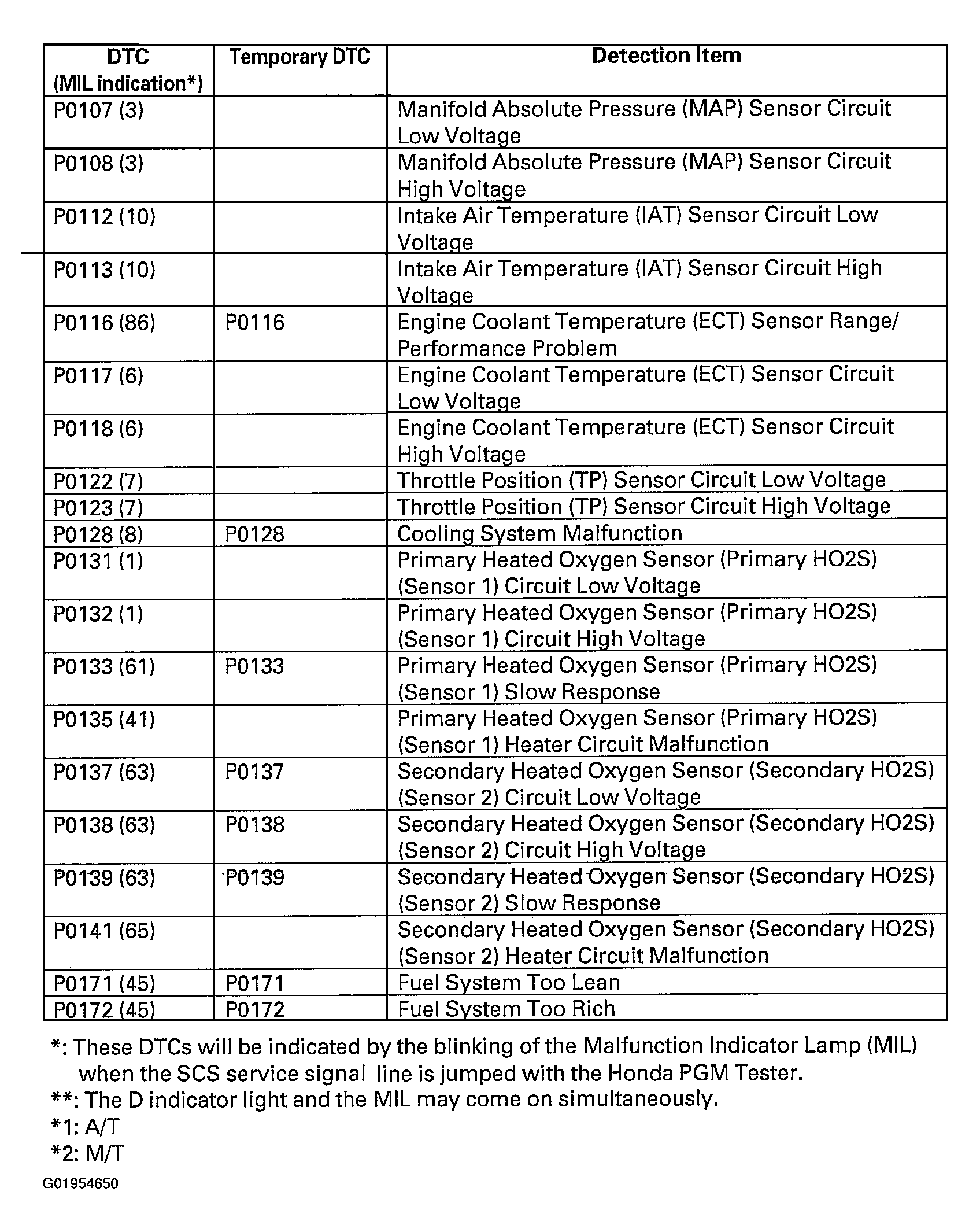

Fig 1: DTC Troubleshooting Chart (1 Of 3)

G01954650

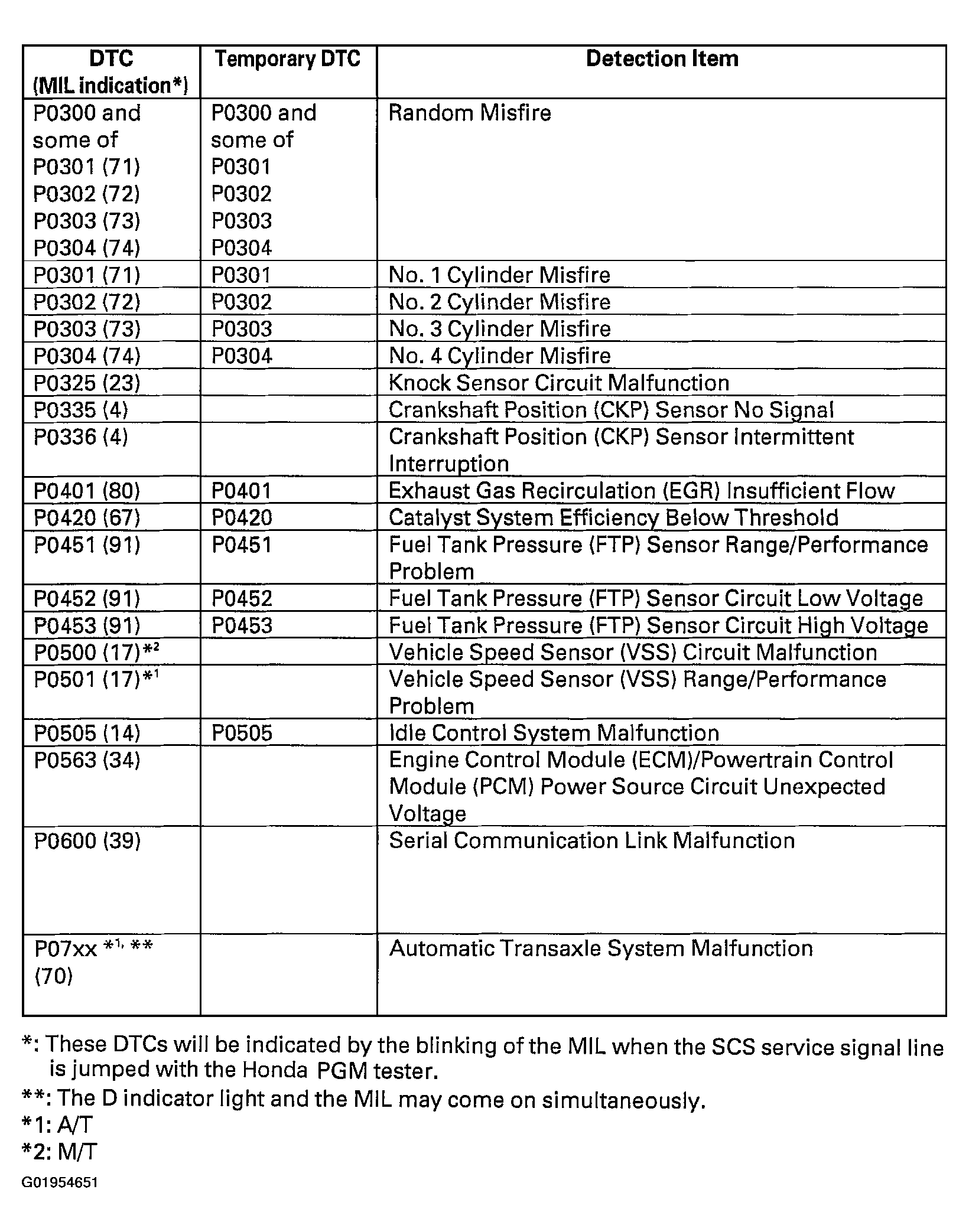

Fig 2: DTC Troubleshooting Chart (2 Of 3)

G01954651

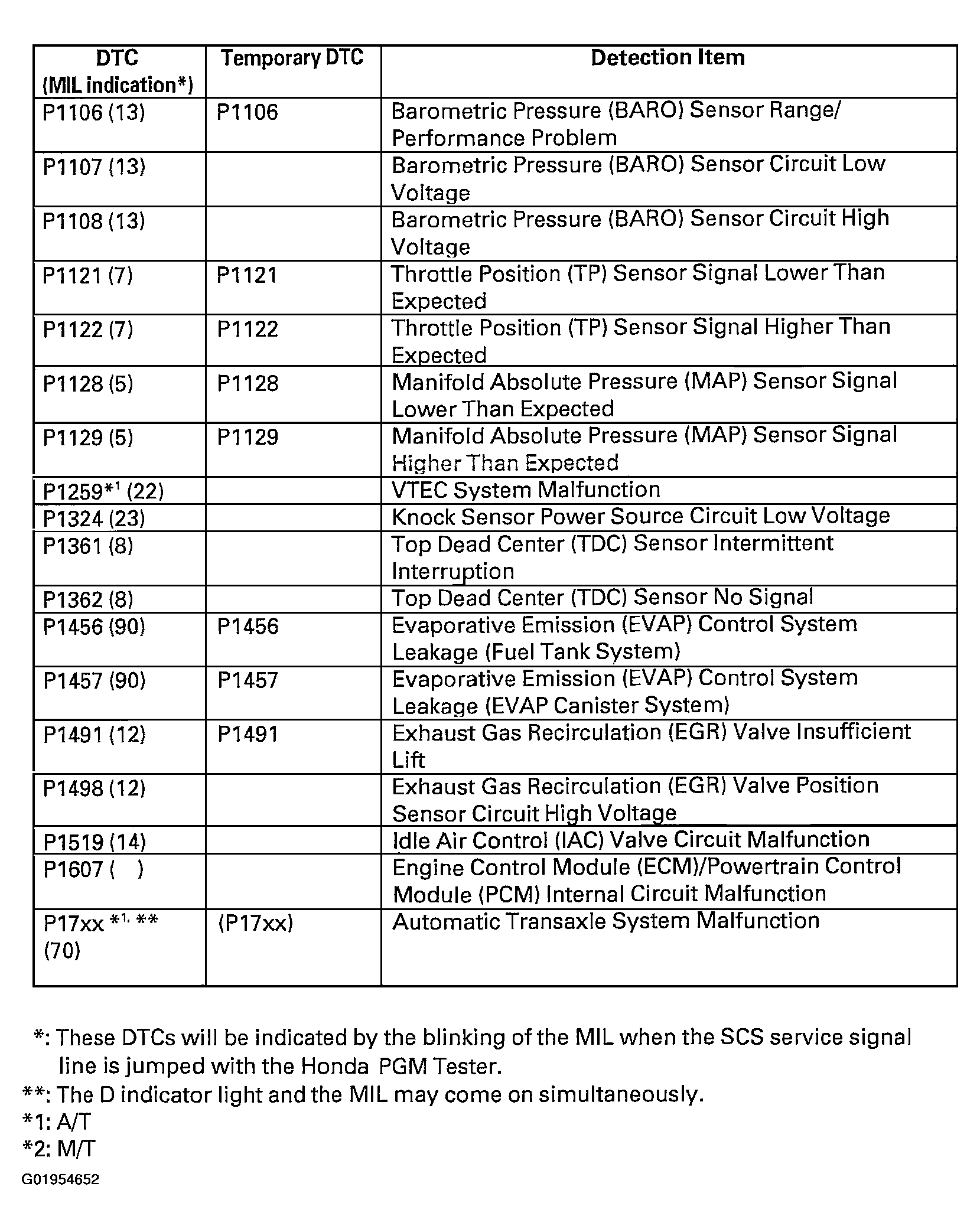

Fig 3: DTC Troubleshooting Chart (3 Of 3)

G01954652
