Actuator/Cable Replacement

  1. Loosen the locknut (A), then disconnect the actuator cable (B) from the throttle linkage.

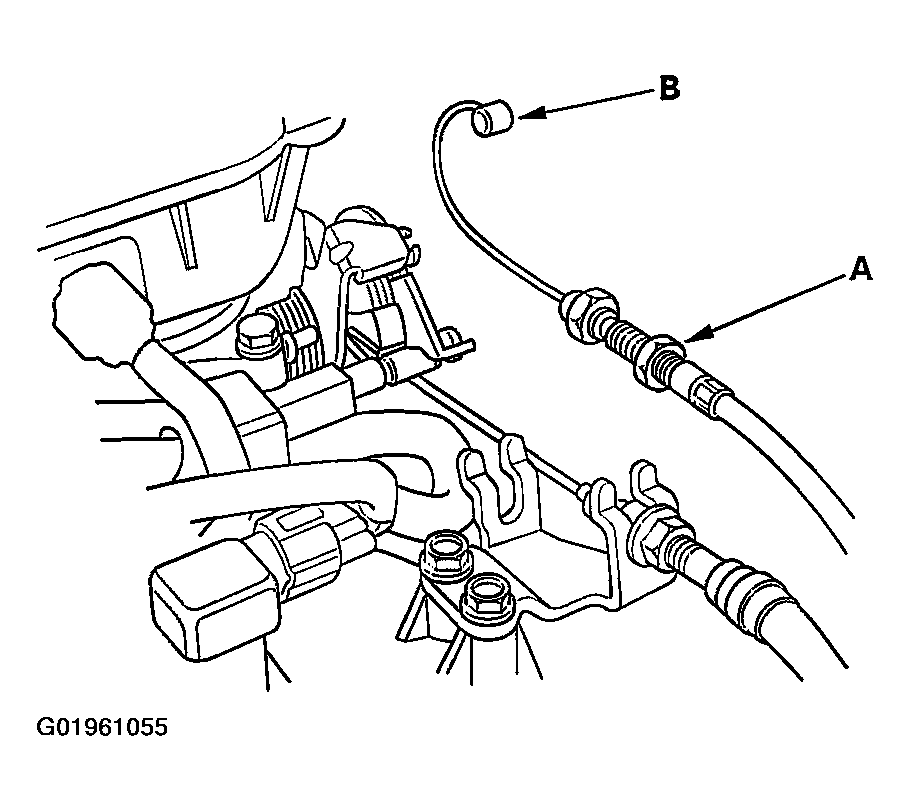

    Fig 1: Disconnecting Actuator Cable From Throttle Linkage
    G01961055
  2. Disconnect the 4P connector (A) from the actuator.

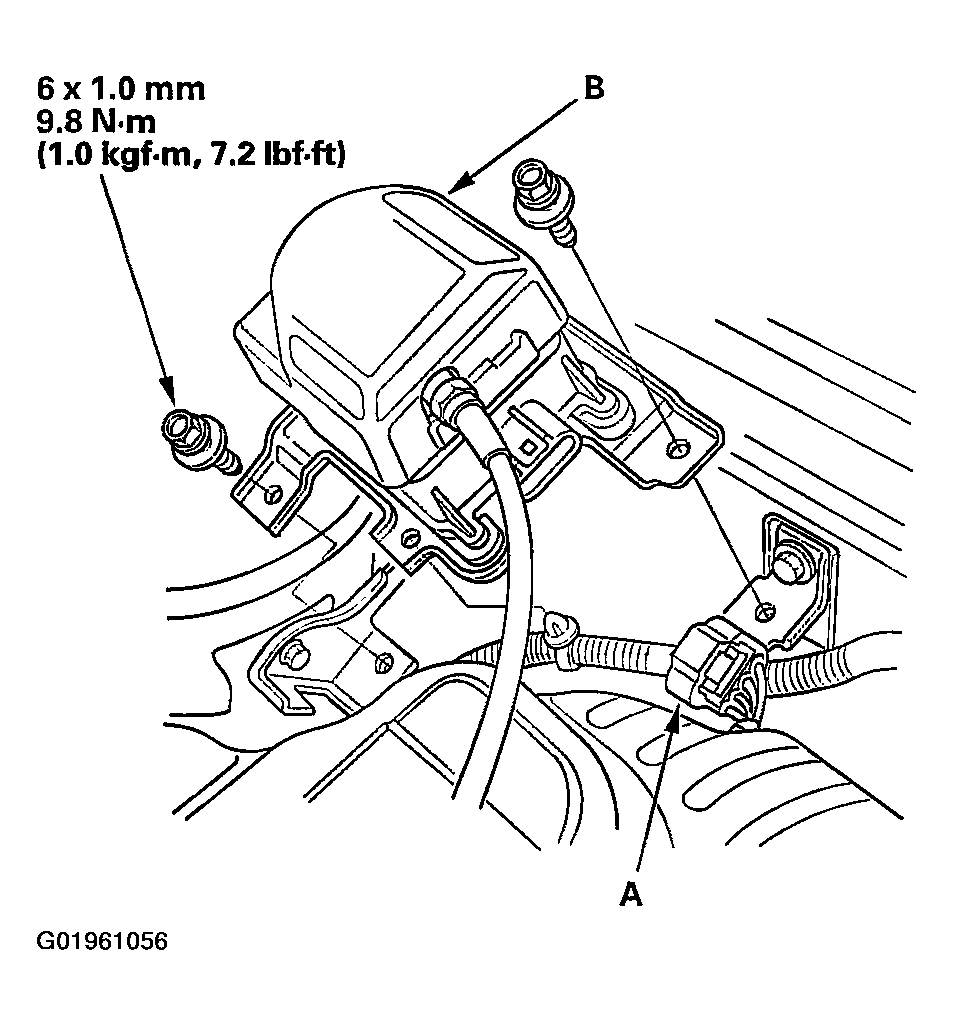

    Fig 2: Disconnecting 4-Pin Connector From Actuator
    G01961056
  3. Remove the two mounting bolts, and remove the actuator assembly (B).
  4. Remove the actuator cover (A) from the actuator.

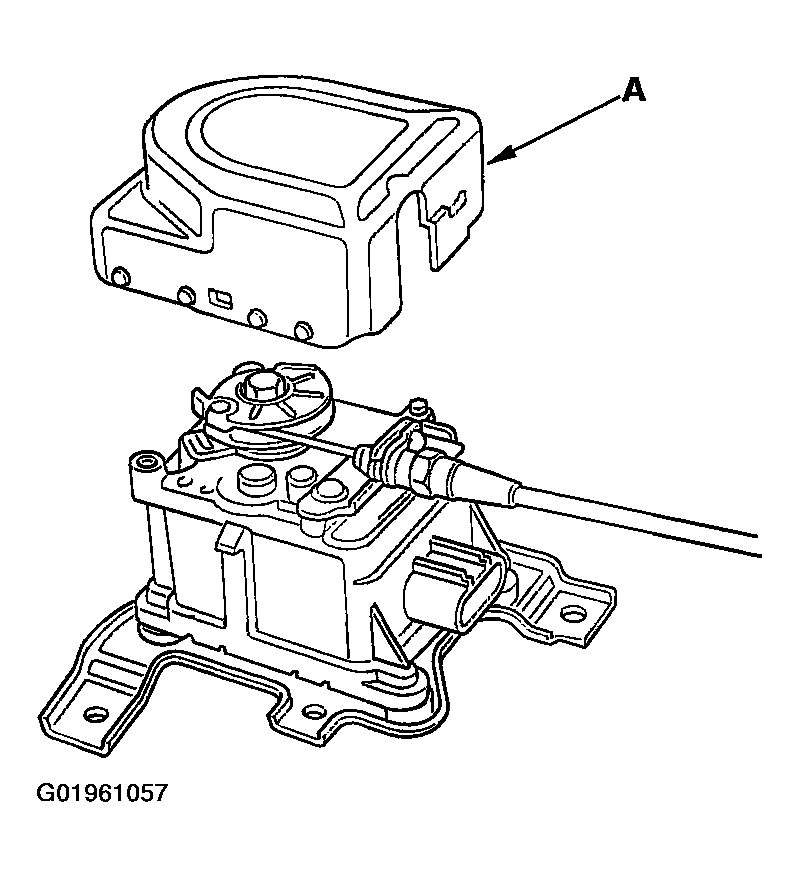

    Fig 3: Removing Actuator Cover From Actuator
    G01961057
  5. Remove the actuator cable from the actuator.

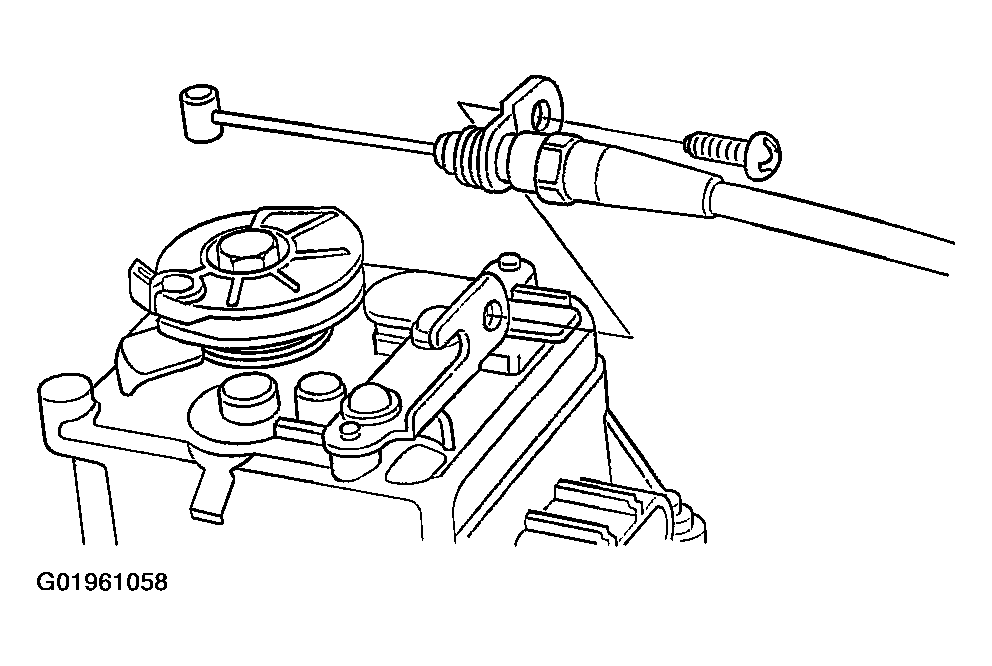

    Fig 4: Removing Actuator Cable From Actuator
    G01961058
  6. Install the reverse order of removal, and adjust the free play at the throttle linkage after connecting the actuator cable.
