Immobilizer Control Unit-Receiver Replacement

  1. Remove the dashboard lower cover.
  2. Remove the steering column covers (see REMOVAL ).
  3. Disconnect the connectors (A) from the immobilizer control unit-receiver (B)

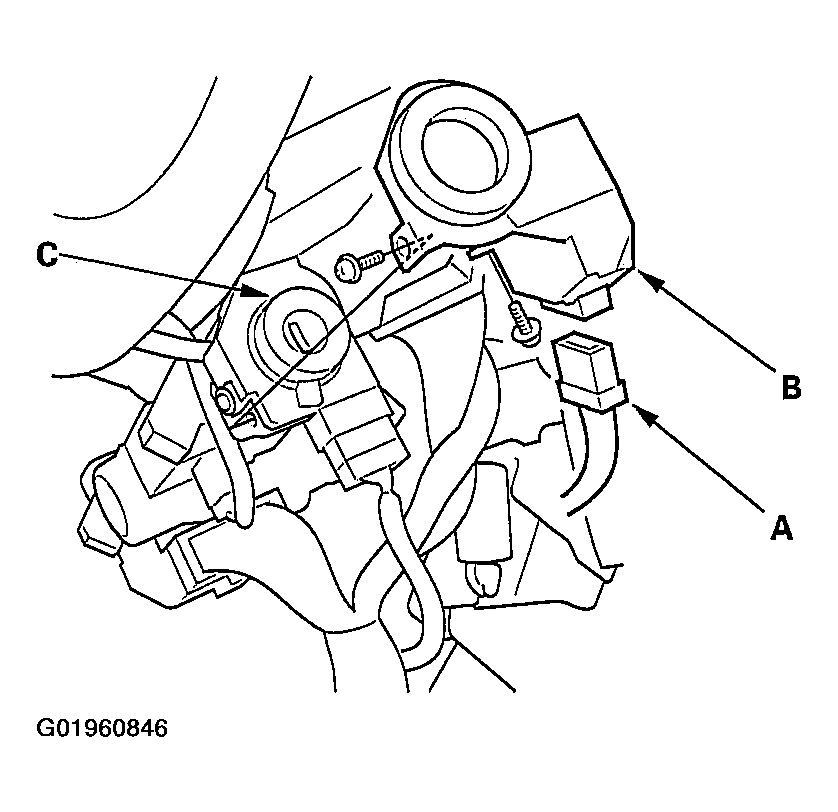

    Fig 1: Disconnecting Connectors From Immobilizer Control Unit Receiver
    G01960846
  4. Remove the two screws and the immobilizer control unit-receiver from the ignition key cylinder (C).
  5. Install the immobilizer control unit-receiver in the reverse order of removal.
  6. After replacement, check the immobilizer system.
