Hood Switch Test

  1. Open the hood.
  2. Disconnect the 2P connector from the hood switch.

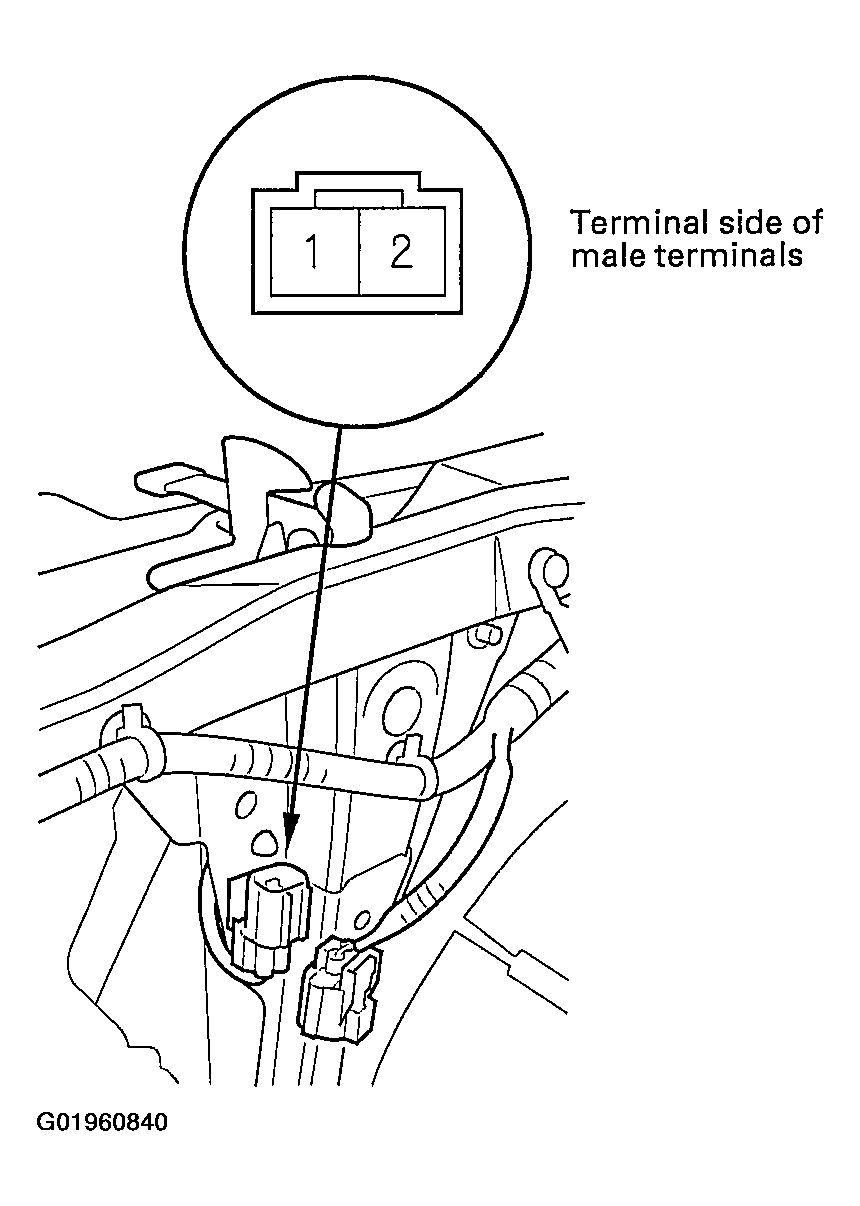

    Fig 1: Disconnecting 2P Connector From Hood Switch
    G01960840
  3. Check for continuity between the terminals.
    • There should be continuity between the No. 1 and No. 2 terminals when the hood is opened. (lever released)
    • There should be no continuity between the No. 1 and No. 2 terminals when the hood closed. (lever pushed down)
