Engine Oil Replacement

NOTE: Under normal conditions, the oil filter should be replaced at every other oil change. Under severe conditions, the oil filter should be replaced at each oil change.

Change interval

Every 10,000 miles (16,000 km) or 12 months (Normal conditions)
Every 5,000 miles (8,000 km) or 6 months (Severe conditions).

Warm up the engine.
Remove the drain bolt (A), and drain the engine oil.

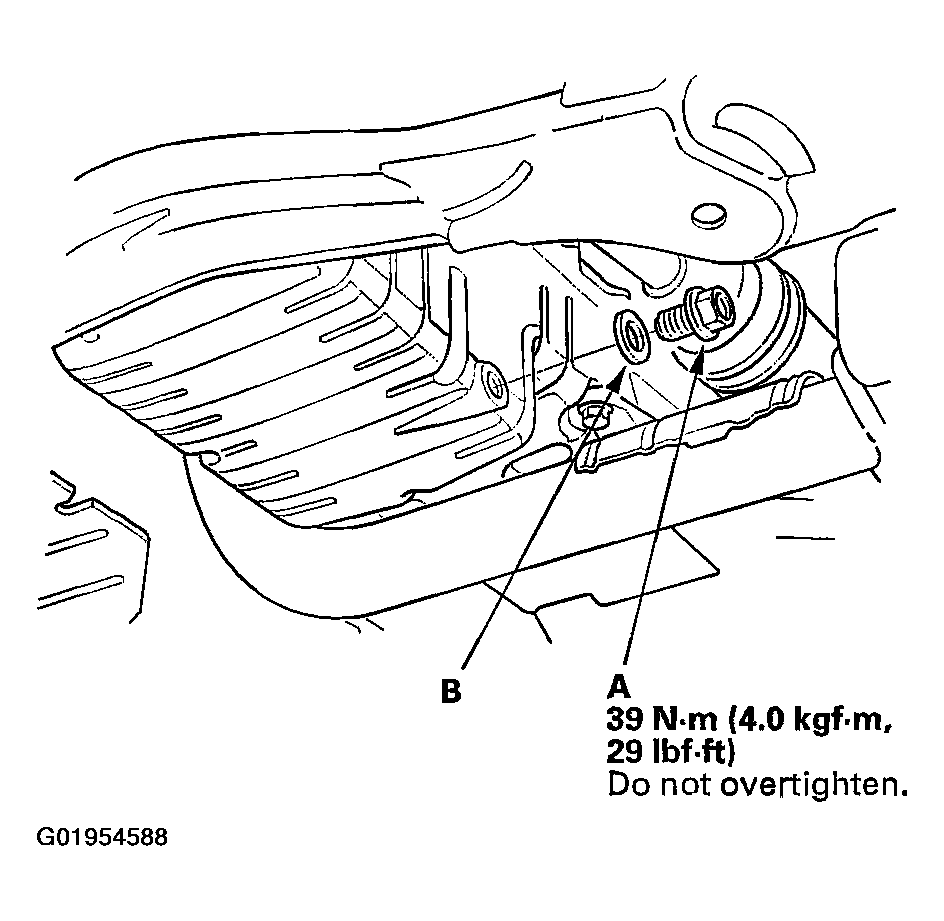

Fig 1: Removing Drain Bolt
Reinstall the drain bolt with a new washer (B).
Refill with the recommended oil.
Capacity
- At Oil Change: 3.3 l (3.5 US qt, 2.9 Imp qt)
- At Oil Change Including Filter: 3.5 l (3.7 US qt, 3.1 Imp qt)
- After Engine Overhaul: 4.2 l (4.4 US qt, 3.7 Imp qt)
Run the engine for more than 3 minutes, then check for oil leakage.
