Back-Up Light Switch Test

  1. Disconnect the back-up light switch (A) connector.

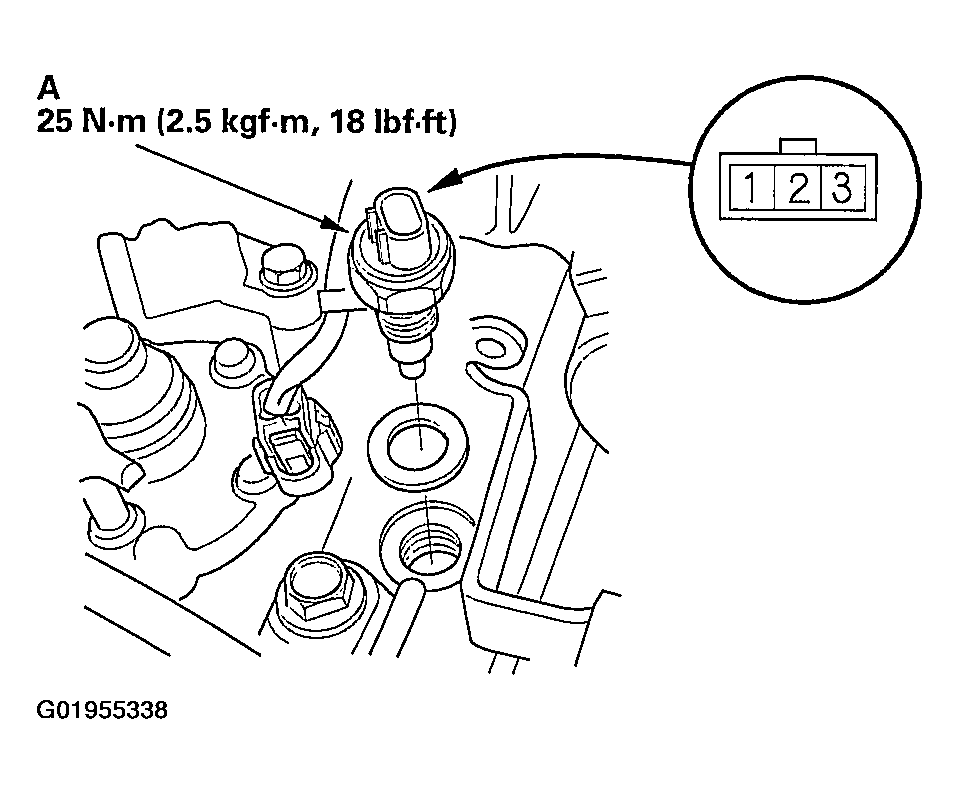

    Fig 1: Disconnecting Back-Up Light Switch Connector
    G01955338
  2. Check for continuity between the back-up light switch 3P connector No. 1 and No. 2 terminals. There should be continuity when the shift lever is in reverse.
  3. If necessary, replace the switch.
