Modulator Unit: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the modulator unit connector (10P), the 8P connector, and the pump motor 2P connector. See Fig 1 .

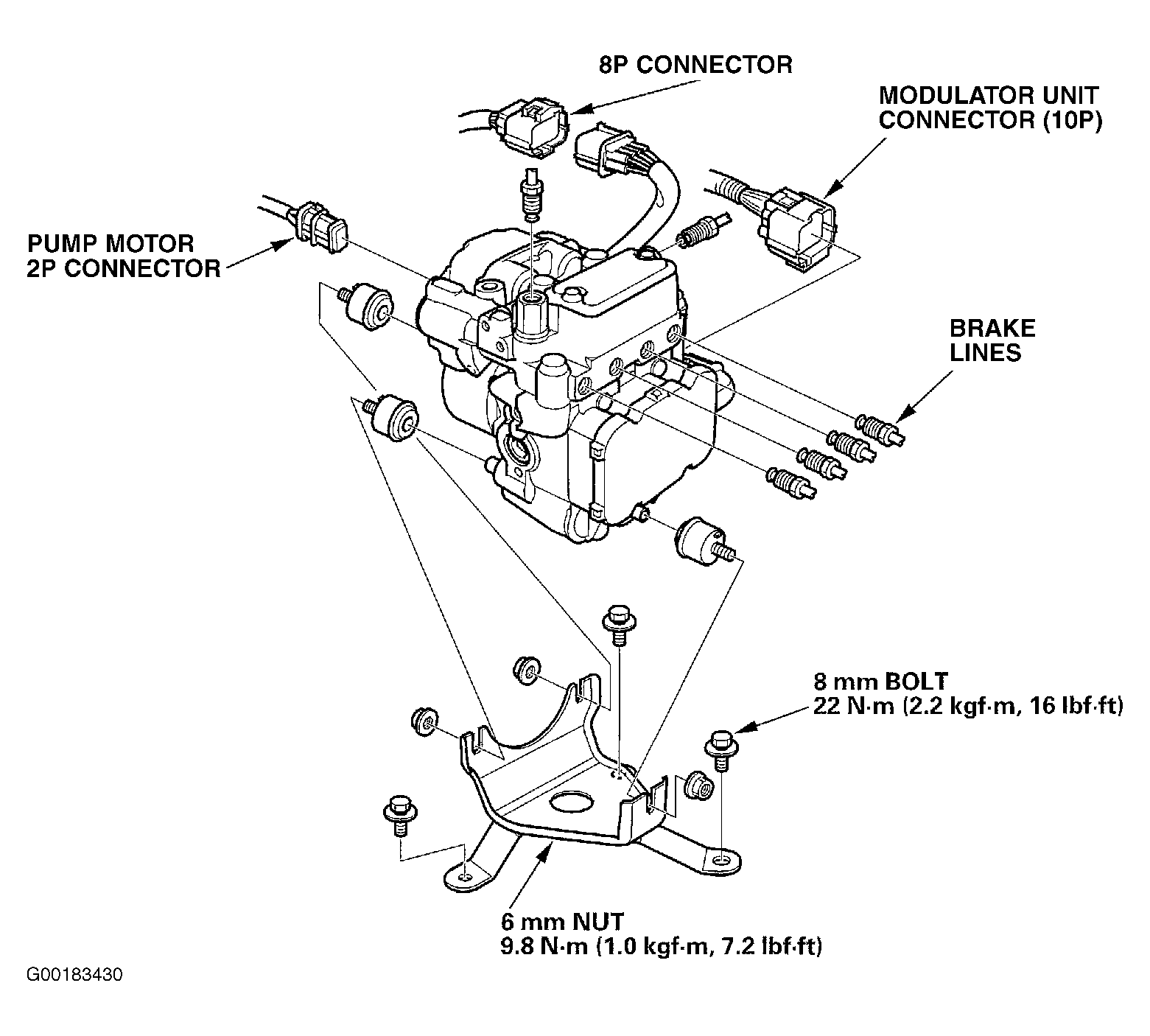

Fig 1: Exploded View Of Modulator Unit

Courtesy of AMERICAN HONDA MOTOR CO., INC.
