Component Locations
Component Locations
NOTE:
For component locations, see
Fig 1
and
Fig 2
.

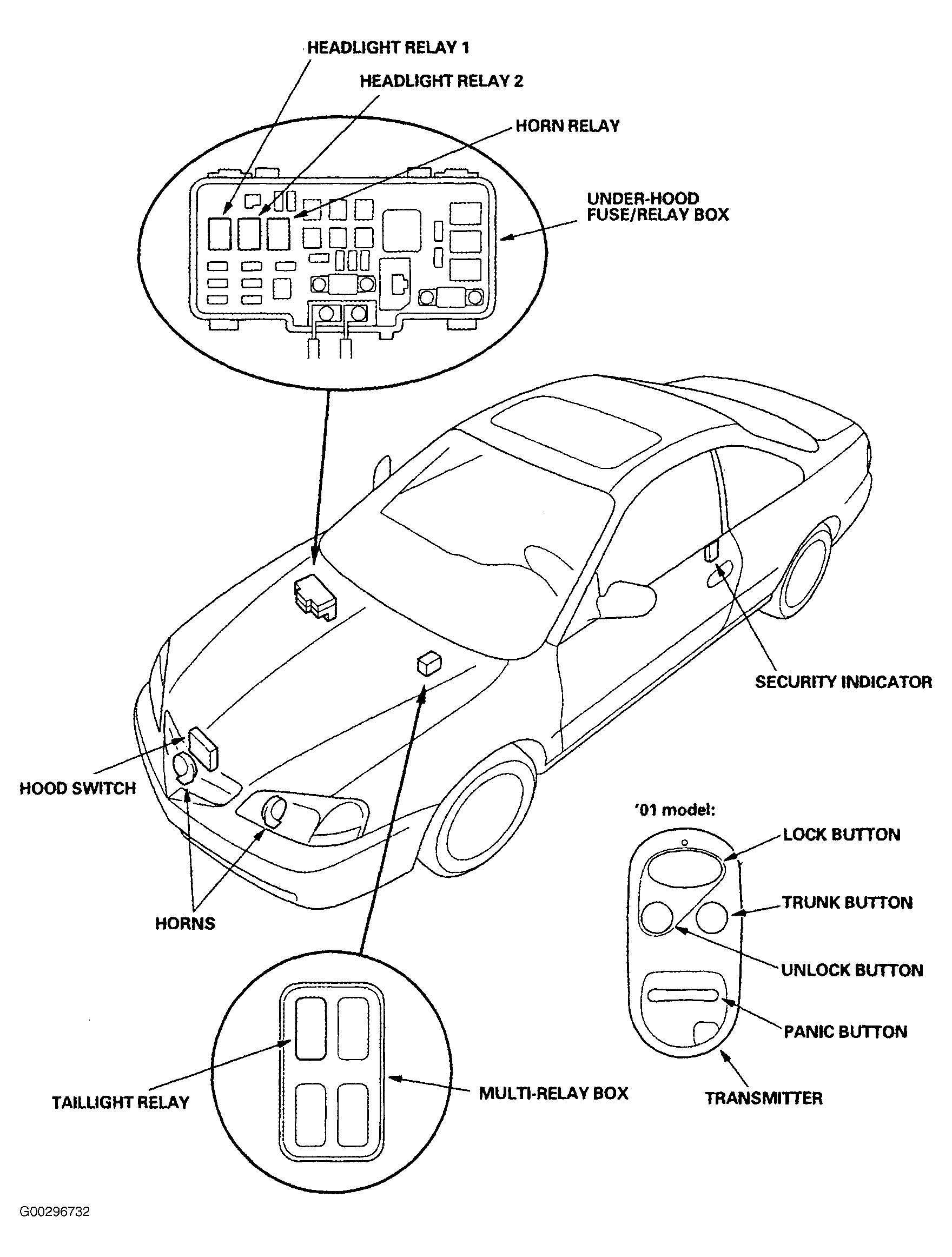

Fig 1: Locating Anti-Theft Components (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

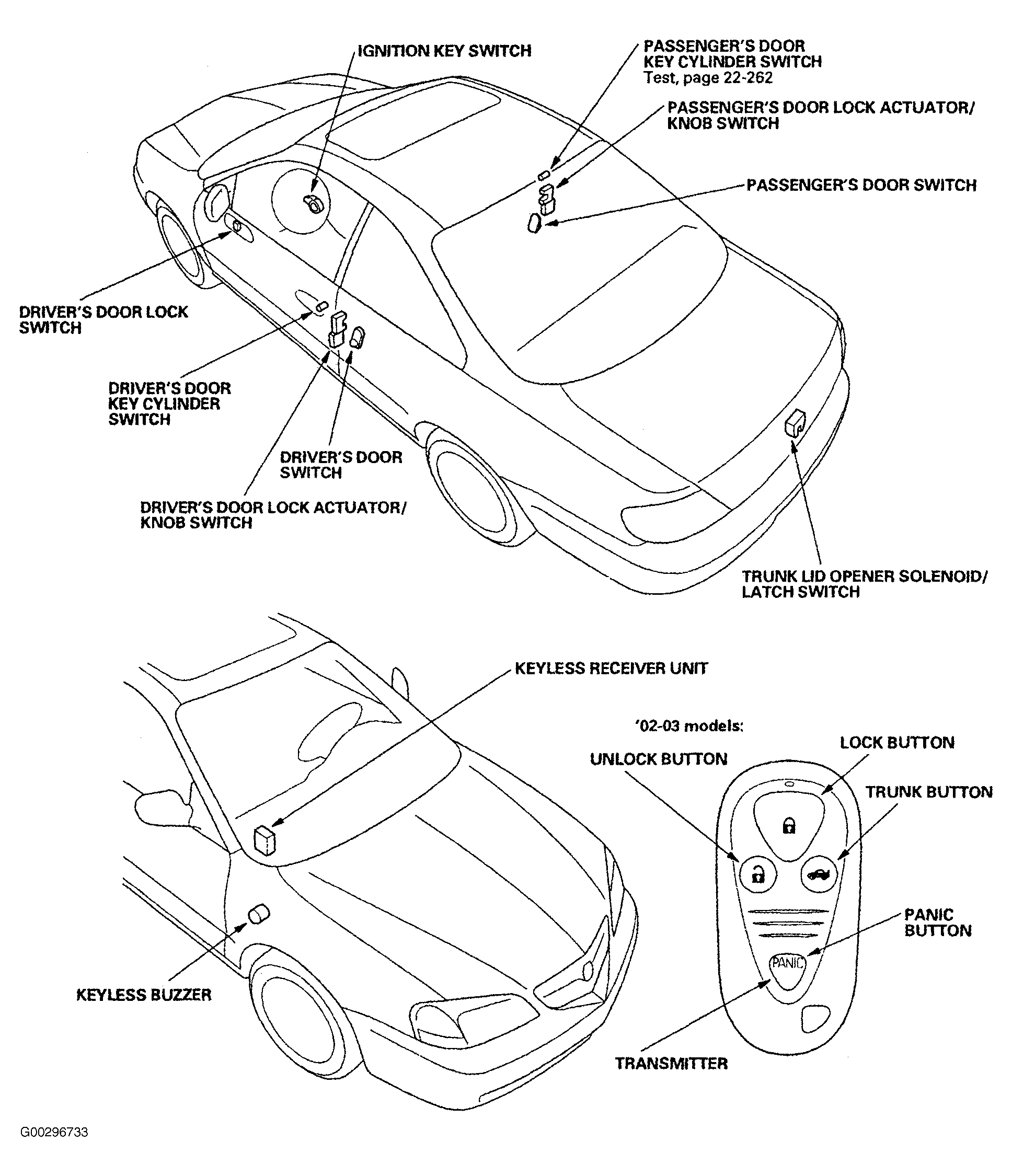

Fig 2: Locating Anti-Theft Components (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
