Acura
›
2003
›
3.2CL Base
›
Repair and Diagnosis
›
Accessories & Equipment
›
Cruise Control Systems
›
Circuit Diagram
Circuit Diagram

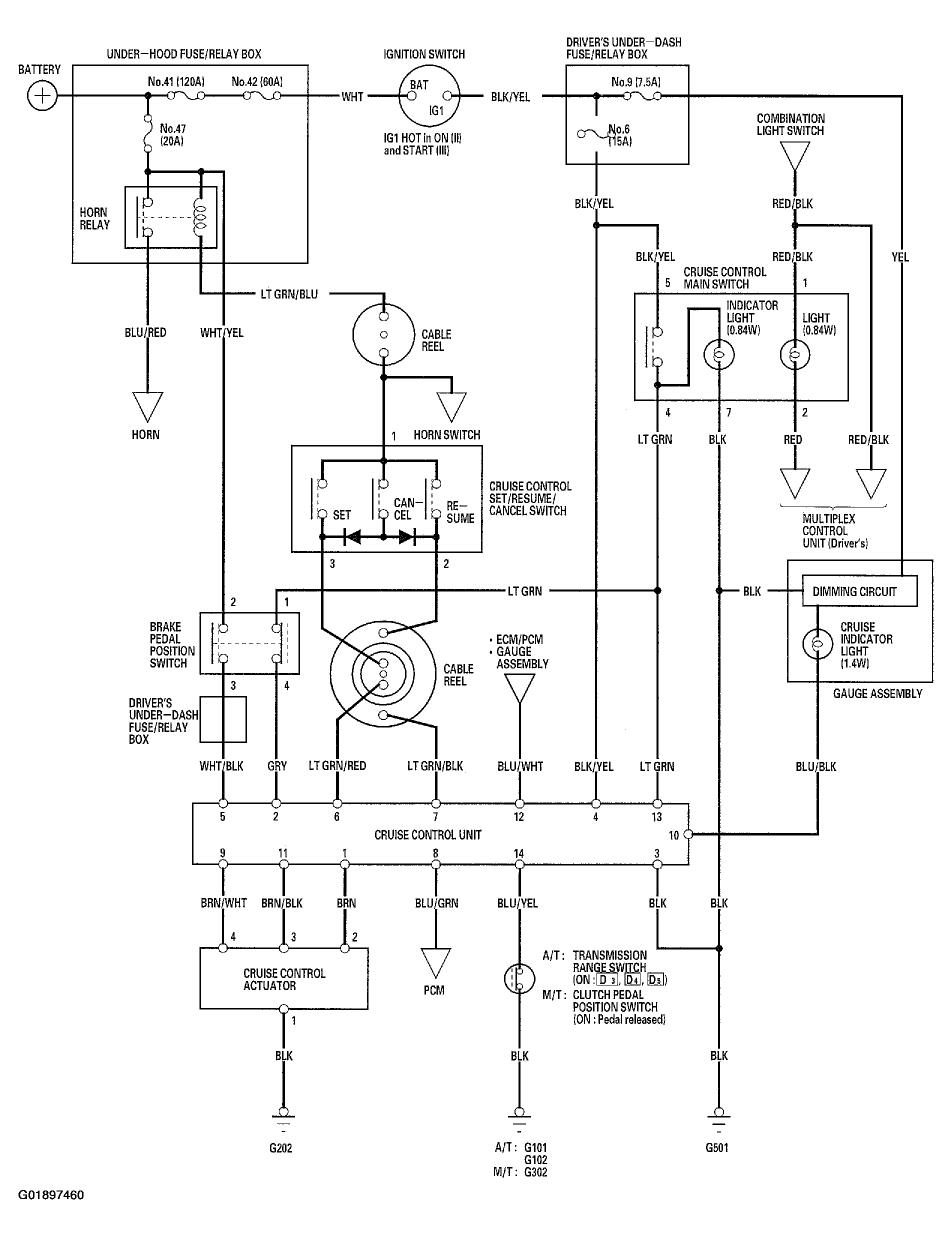

Fig 1: Cruise Control System Wiring Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
