GPS Antenna Removal/Installation

Remove the rear speaker grille and left rear shelf .
Remove the GPS antenna from the rear shelf area.

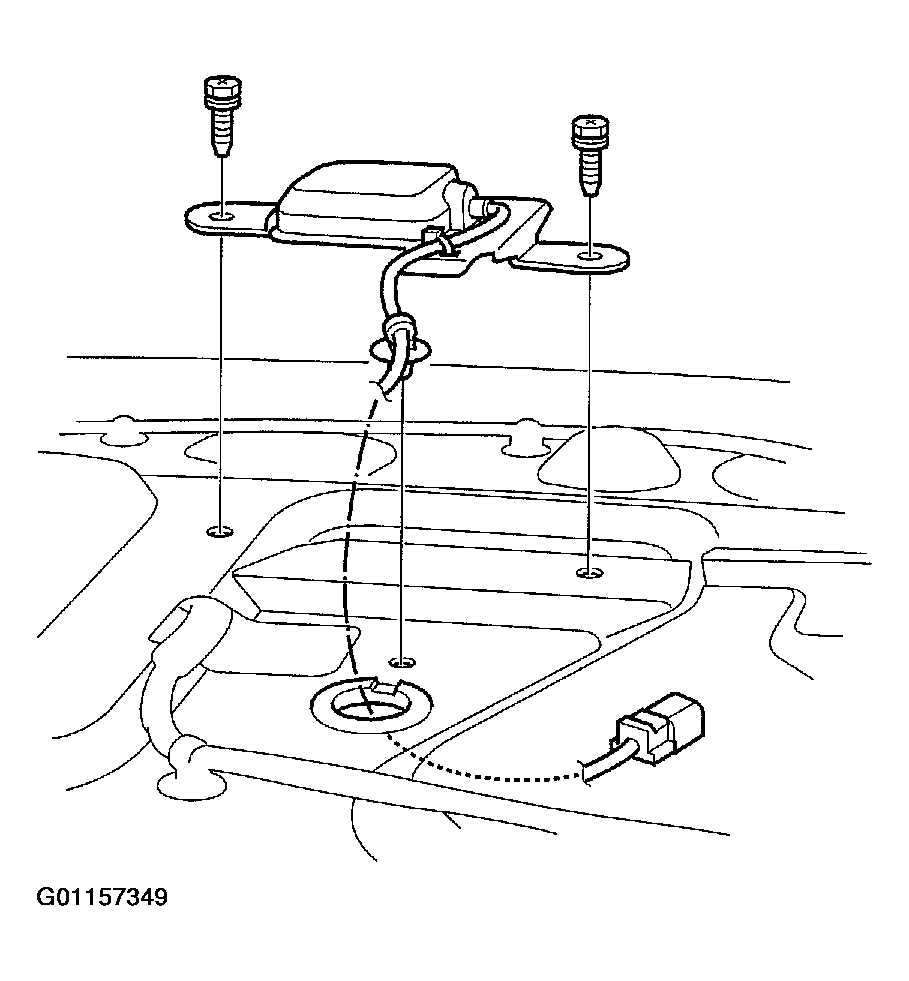

Fig 1: Removing The GPS Antenna
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal.
