Switch Test

  1. Remove the driver's door panel (see TRIM REMOVAL/INSTALLATION - DOOR AREA ).
  2. Disconnect the 2P connector from the switch.

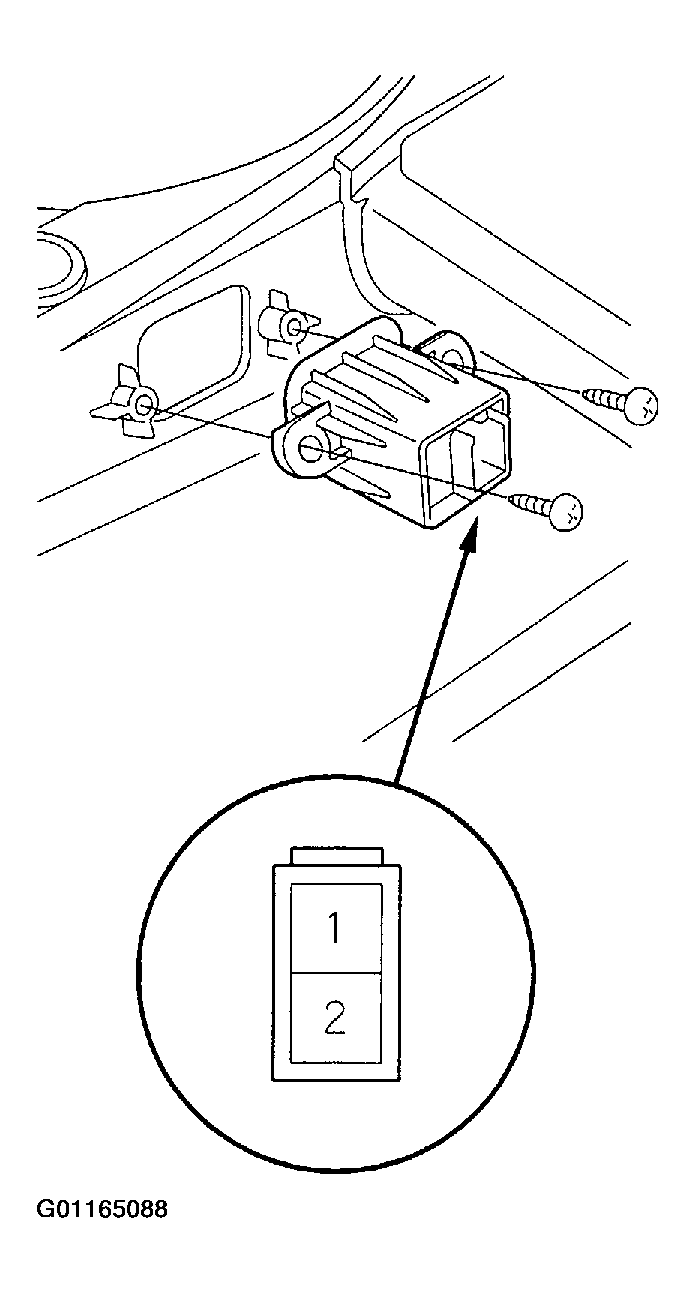

    Fig 1: Disconnecting The 2P Connector From The Switch
    G01165088Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between the No. 1 and No. 2 terminals.
    • There should be continuity when the switch is pushed.
    • There should be no continuity when the switch is released.
  4. If the continuity is not as specified, replace the switch.
