Trim Removal/Installation - Trunk Area

  1. Remove the trim as shown.
  2. Install the trim in the reverse order of removal, and replace any damaged clips.

    Fastener Locations

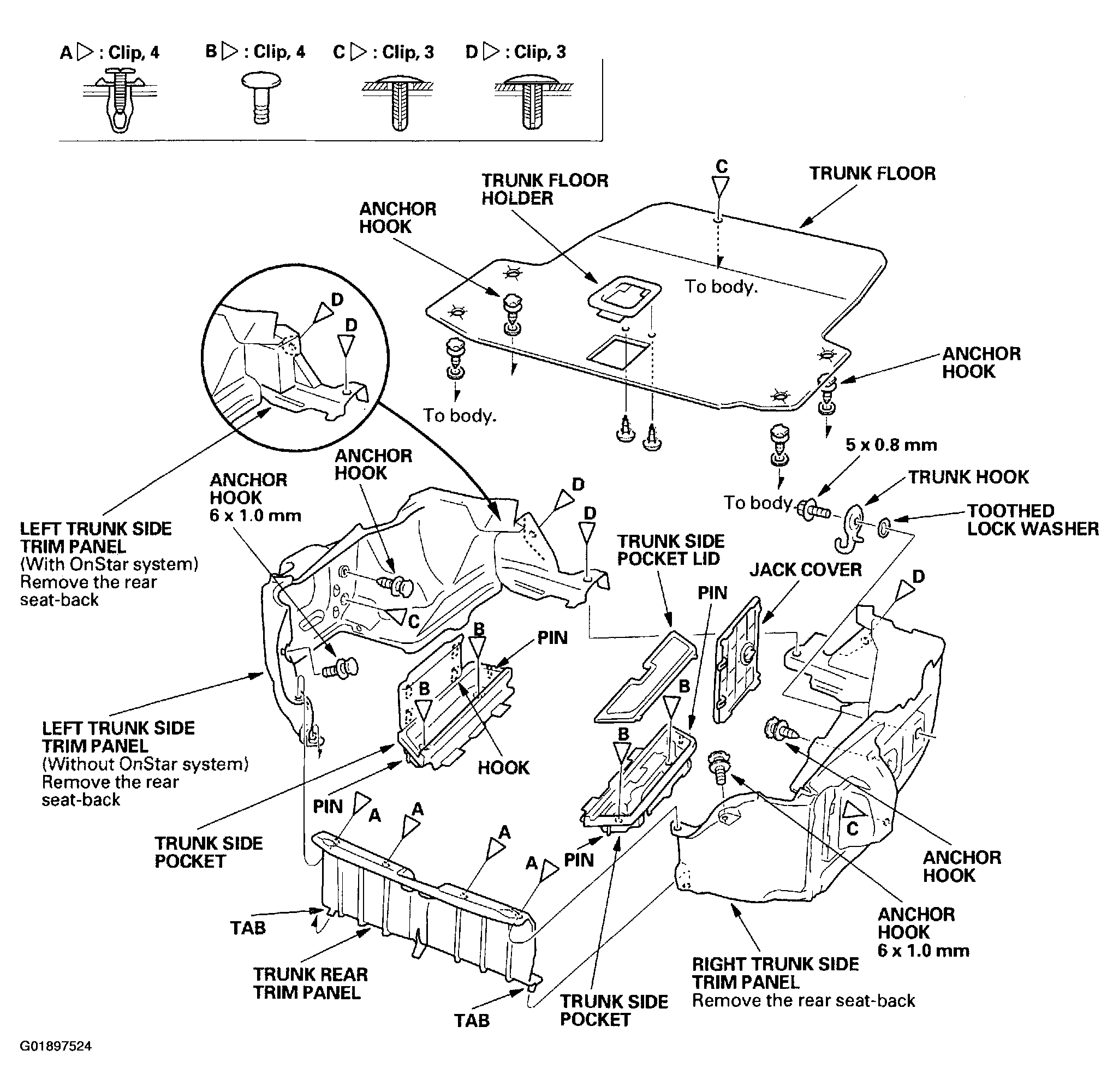

    Fig 1: Removing Trunk Area Trim
    G01897524
