Master Switch Test ('03 model)
Remove the power window master switch.

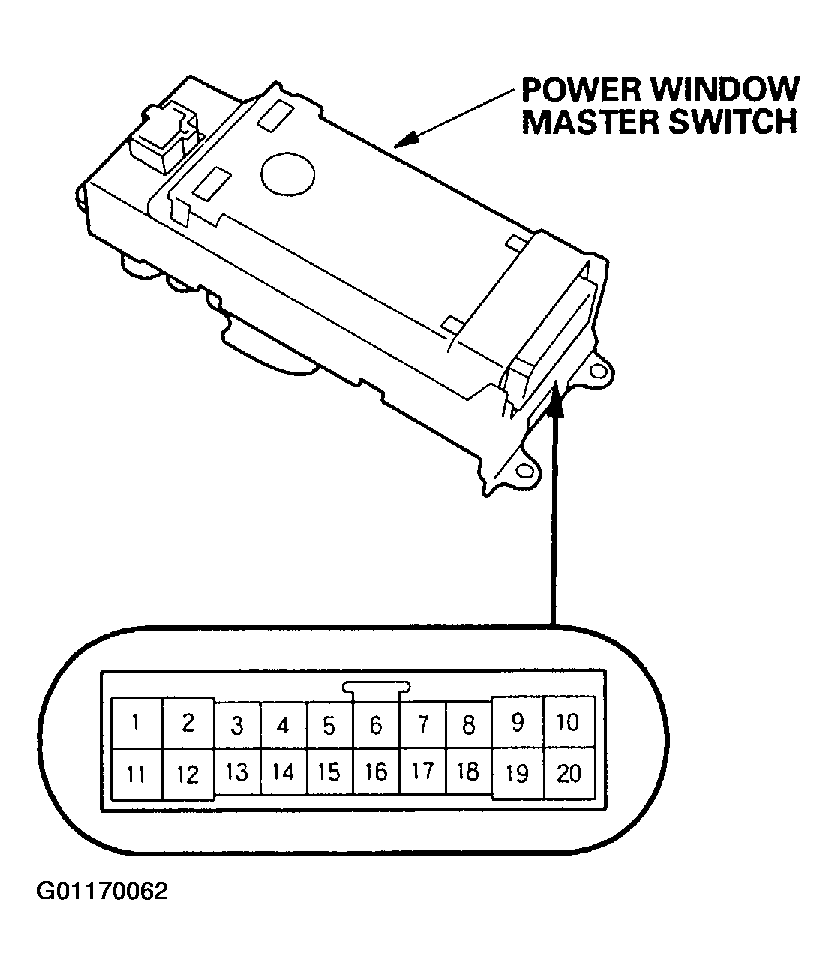

Fig 1: Removing The Power Window Master Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the tables.

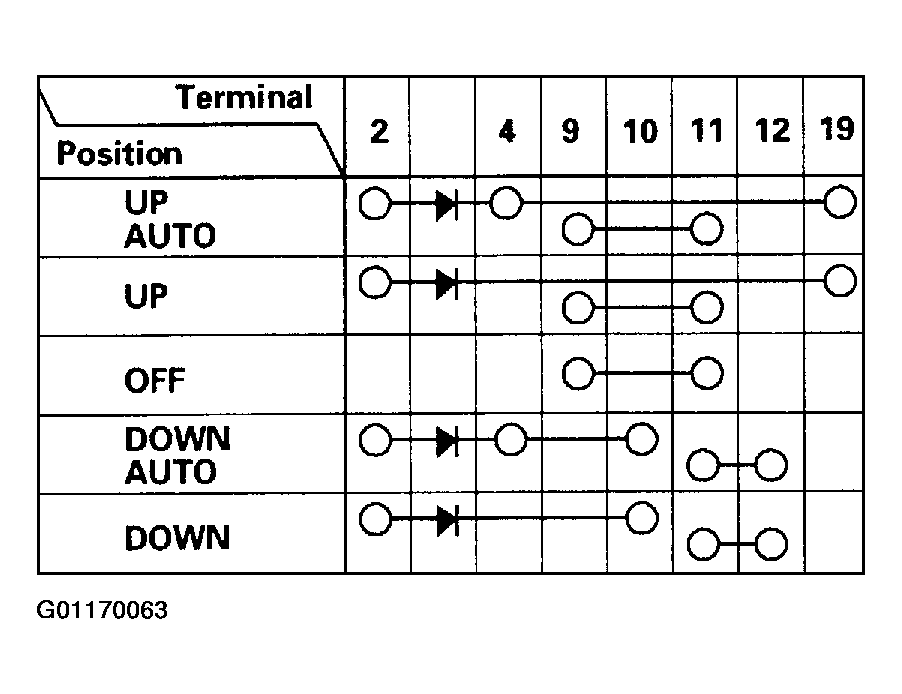

Fig 2: Master Switch Test (Driver's Window Switch)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 3: Master Switch Test (Main Switch)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the power window master switch.
