DTC 54: Abs Fail-Safe Relay

For DTC testing chart, see Fig 1 and Fig 2 .

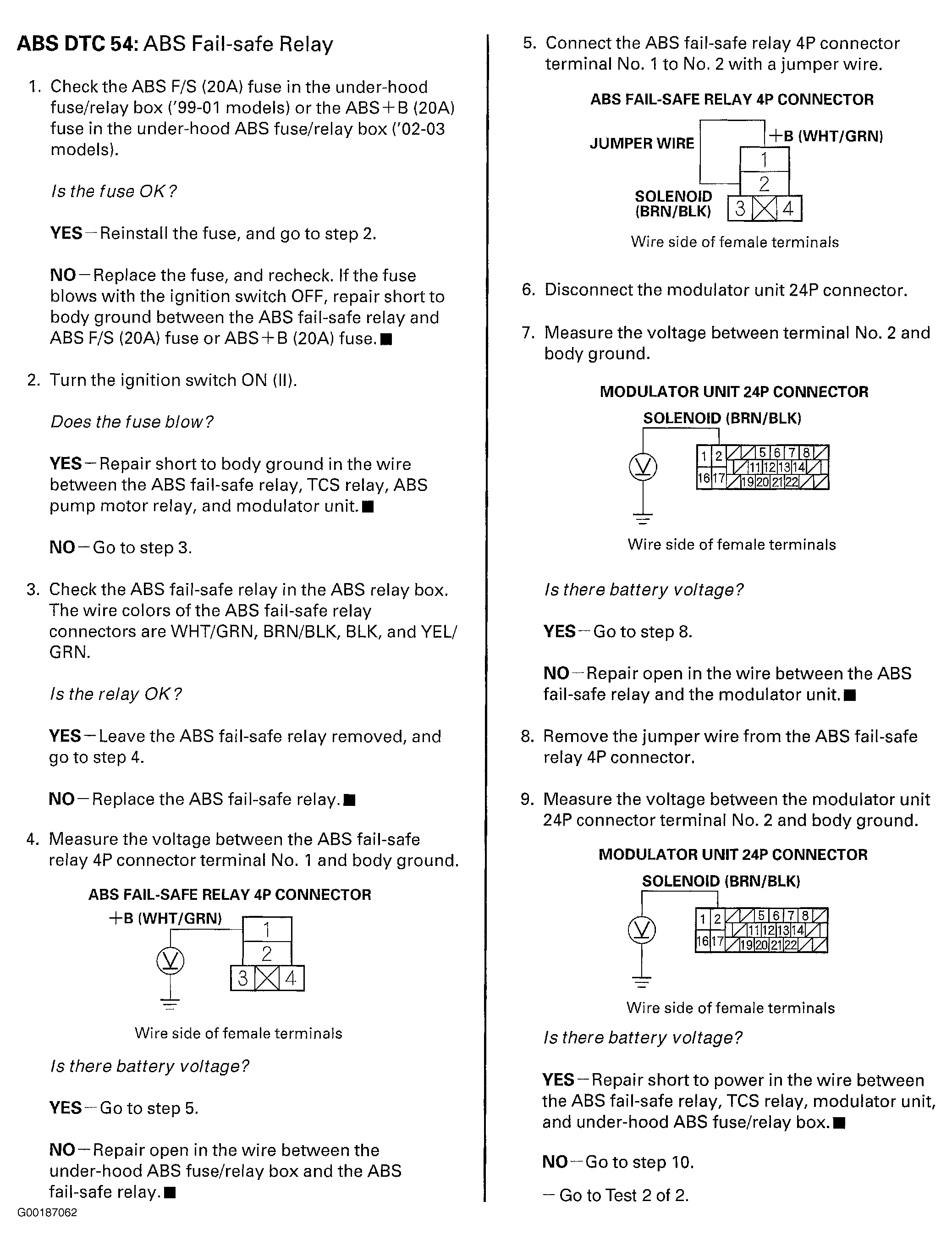

Fig 1: DTC 54: ABS Fail-Safe Relay Testing Chart (1 of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

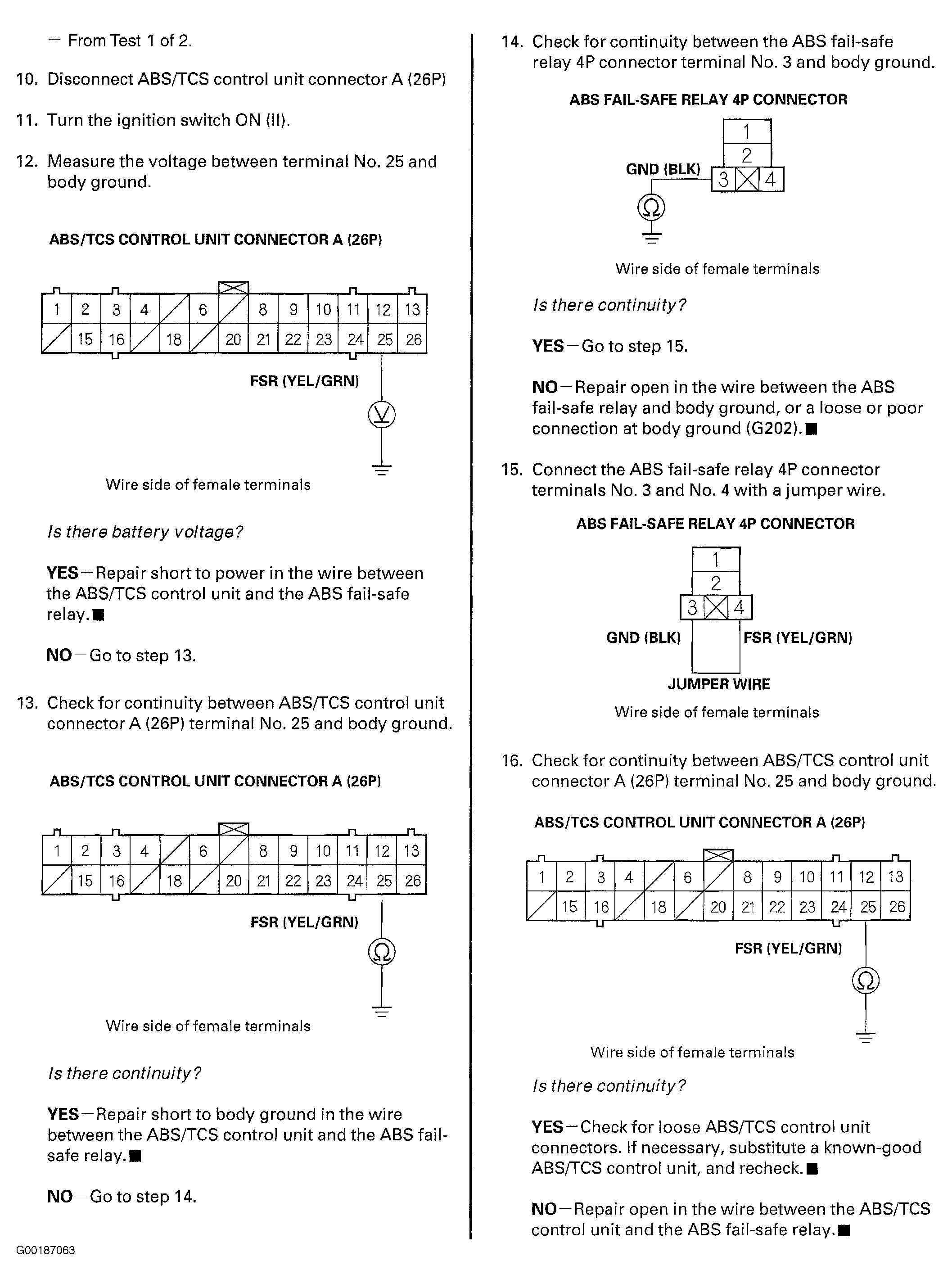

Fig 2: DTC 54: ABS Fail-Safe Relay Testing Chart (2 of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
