A/C Pressure Switch Connector End View
A/C Pressure Switch Connector End View

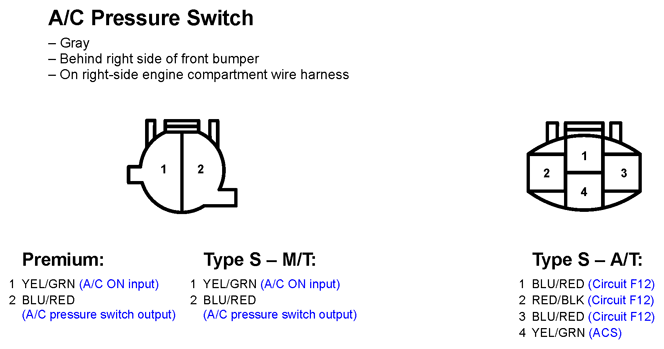

Fig 1: A/C Pressure Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
