ABS-TCS Control Unit (Premium) Connector End View
ABS-TCS Control Unit (Premium) Connector End View

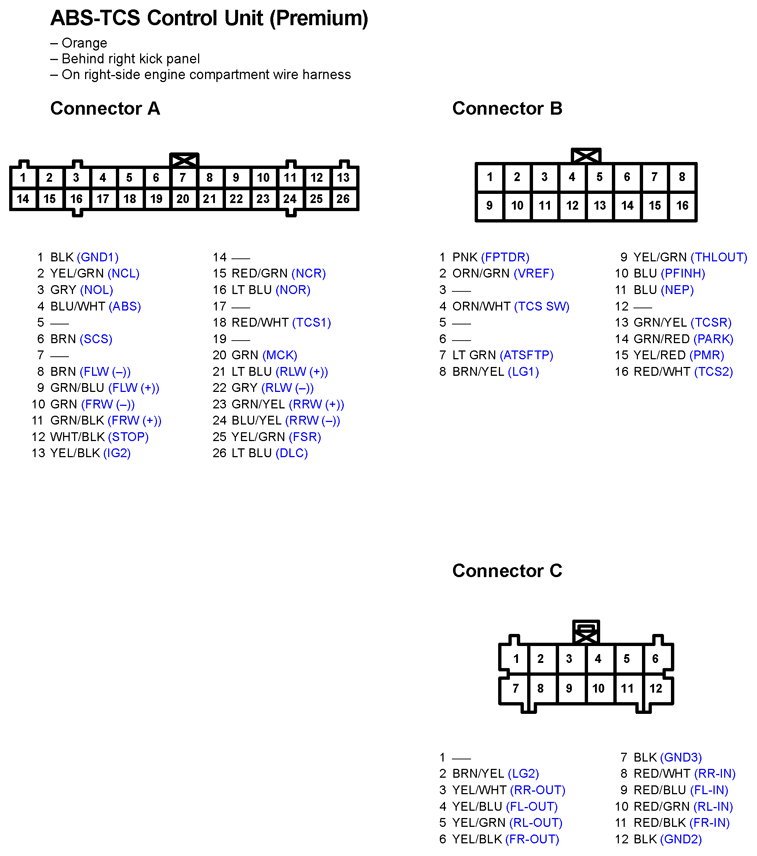

Fig 1: ABS-TCS Control Unit (Premium) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
