C552 (Navigation) Connector End View
C552 (Navigation) Connector End View

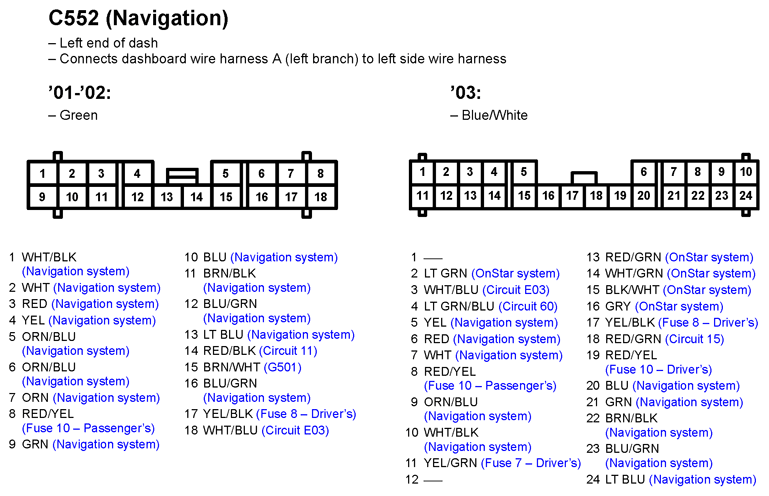

Fig 1: C552 (Navigation) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
