ECM (M/T) Connector End View
ECM (M/T) Connector End View

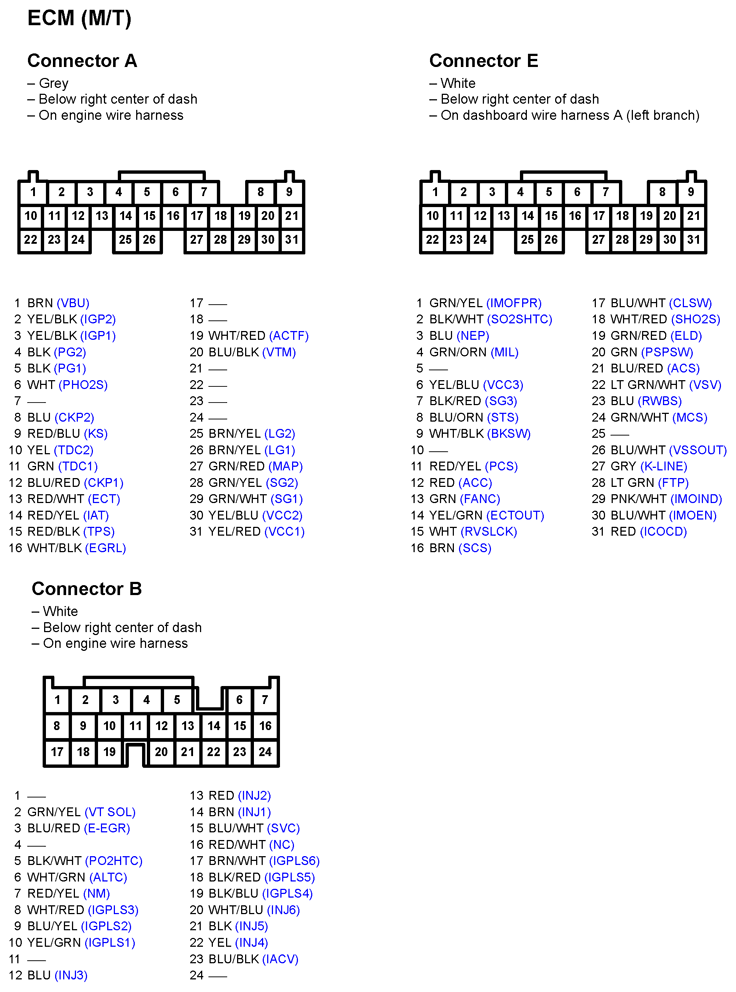

Fig 1: ECM (M/T) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
