HO2S, Secondary Connector End View
HO2S, Secondary Connector End View

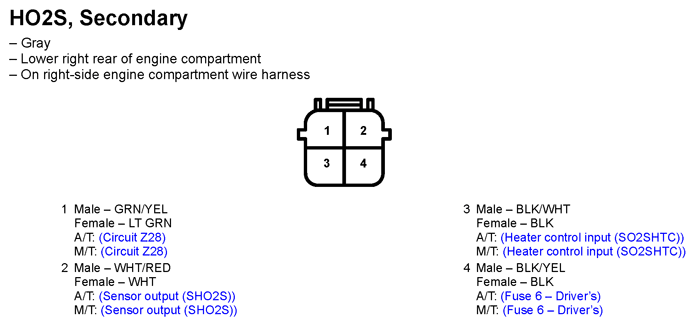

Fig 1: HO2S, Secondary Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
