Headlight, Left or Right Connector End View
Headlight, Left or Right Connector End View

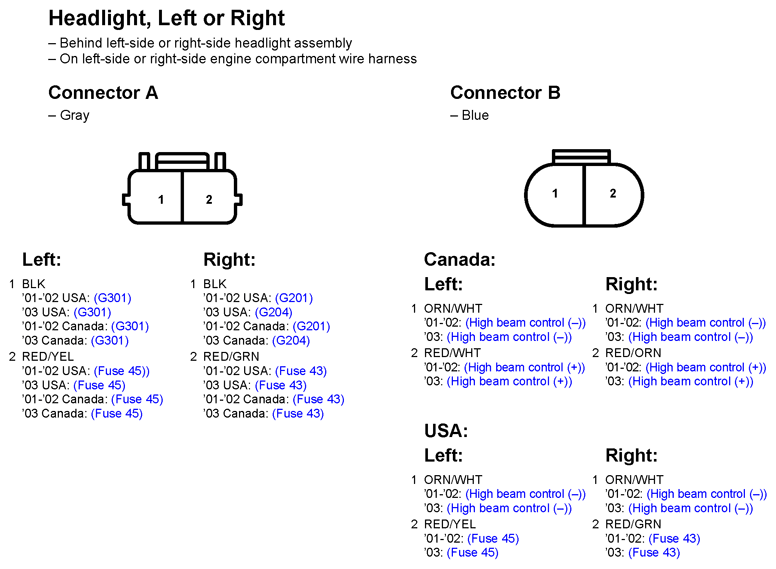

Fig 1: Headlight, Left or Right Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
