OnStar Control Unit ('03 Navigation) Connector End View
OnStar Control Unit ('03 Navigation) Connector End View

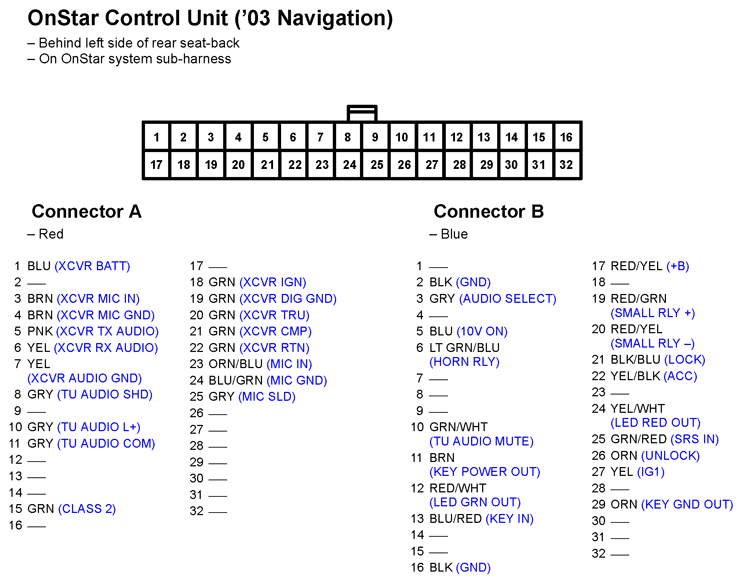

Fig 1: OnStar Control Unit ('03 Navigation) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
