PCM (A/T) Connector End View

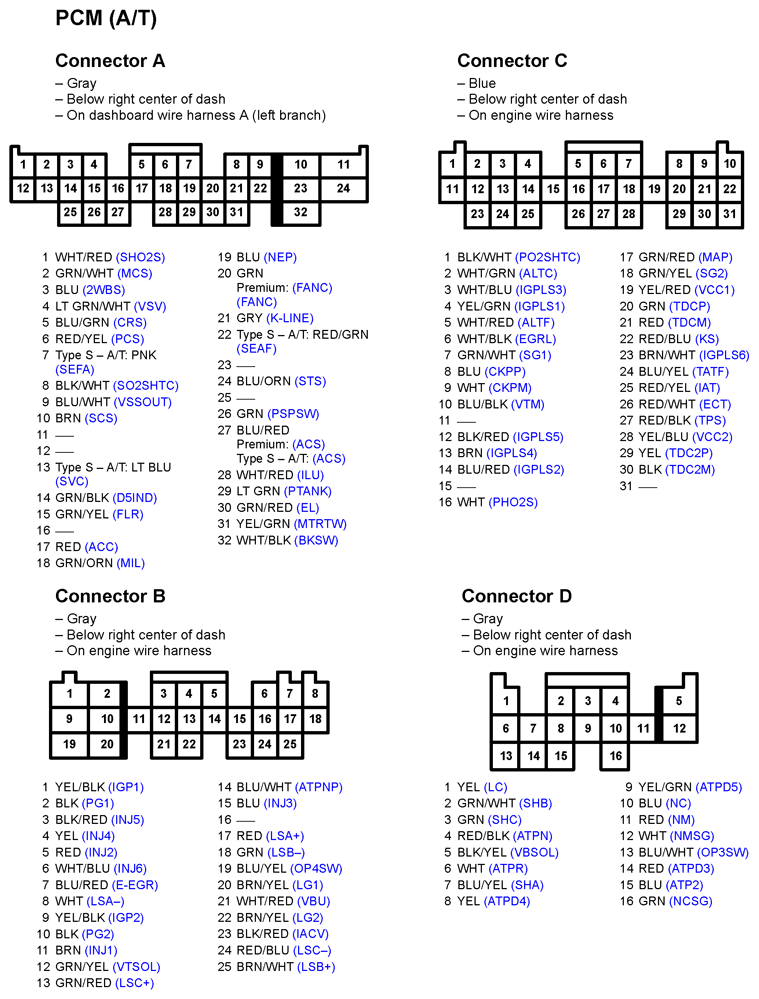

Fig 1: PCM (A/T) Connector End View (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

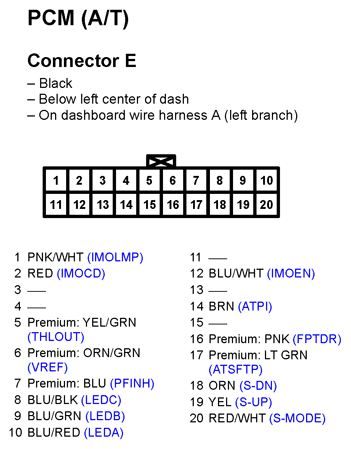

Fig 2: PCM (A/T) Connector End View (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
