Power Seat Control Unit, Driver's Connector End View
Power Seat Control Unit, Driver's Connector End View

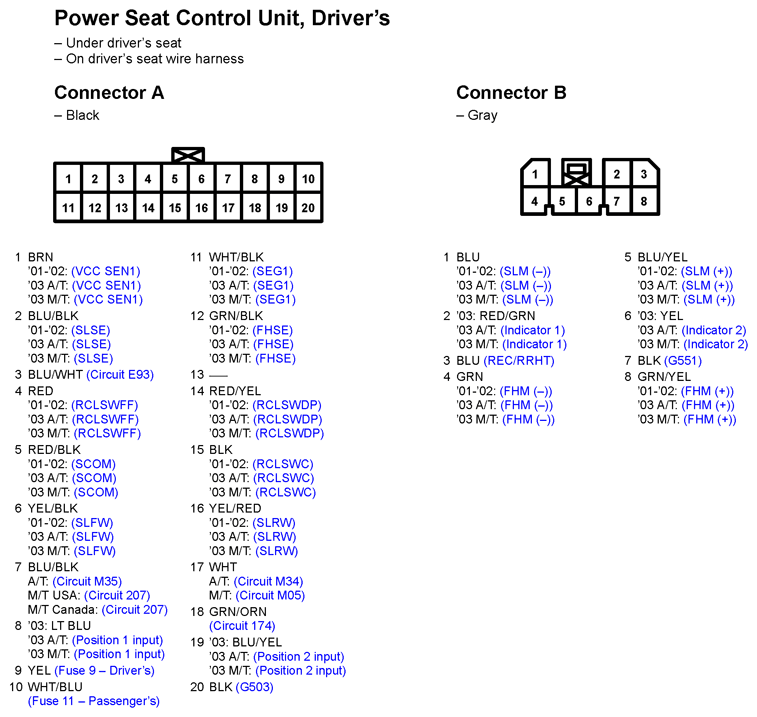

Fig 1: Power Seat Control Unit, Driver's Connector End View (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

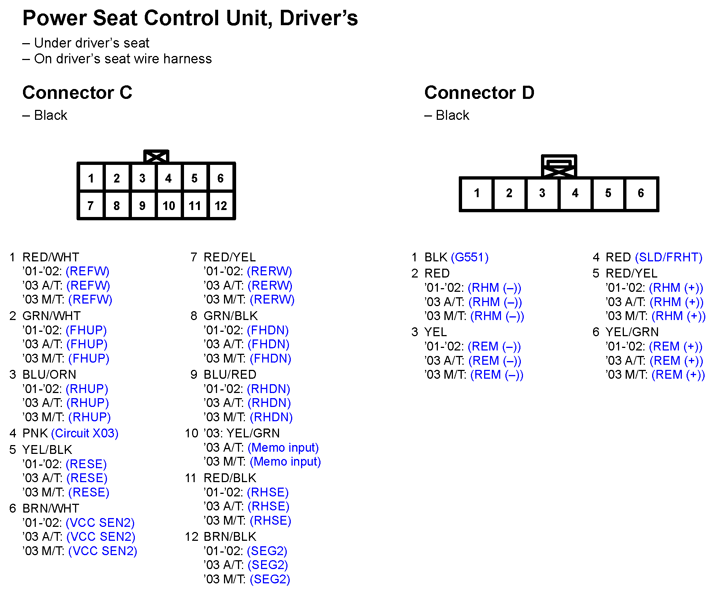

Fig 2: Power Seat Control Unit, Driver's Connector End View (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
