Circuit Diagram
Circuit Diagram

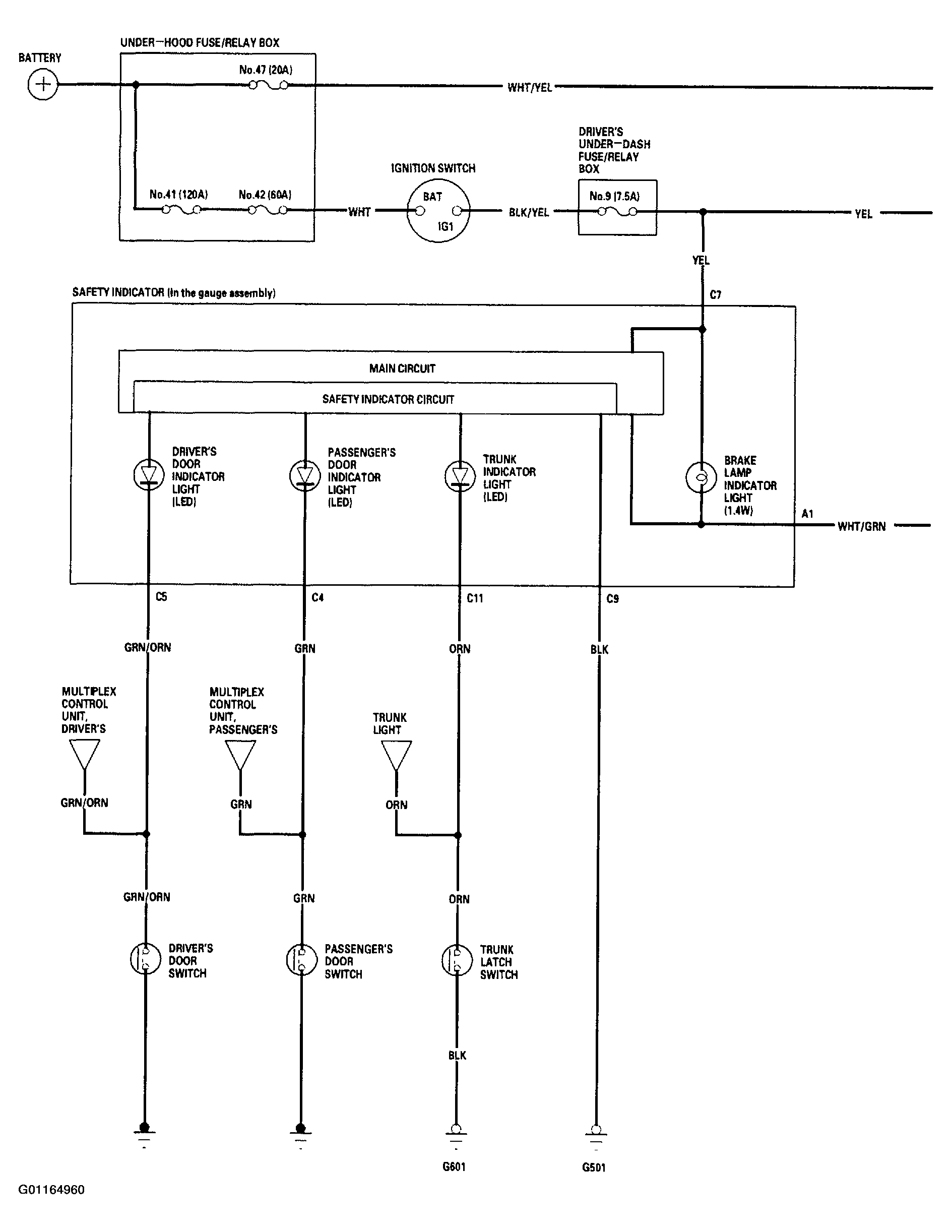

Fig 1: Safety Indicator System Wiring Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 2: Safety Indicator System Wiring Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
