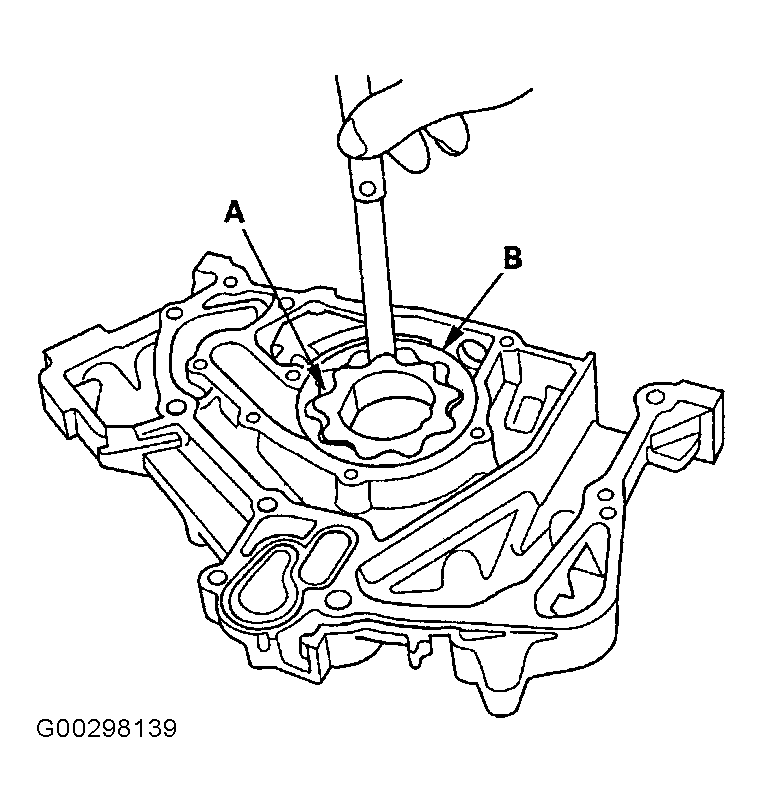

- Check the inner-to-outer rotor radial clearance between the inner rotor (A) and outer rotor (B). See Fig 1 and INNER ROTOR-TO-OUTER ROTOR RADIAL CLEARANCE table. If the inner-to-outer rotor clearance exceeds the service limit, replace the oil pump assembly.
INNER ROTOR-TO-OUTER ROTOR RADIAL CLEARANCE
| Application |
Specification - In. (mm) |
| Standard (New) |
.002-.006 (.04-.16) |
| Service Limit |
.008 (.20) |

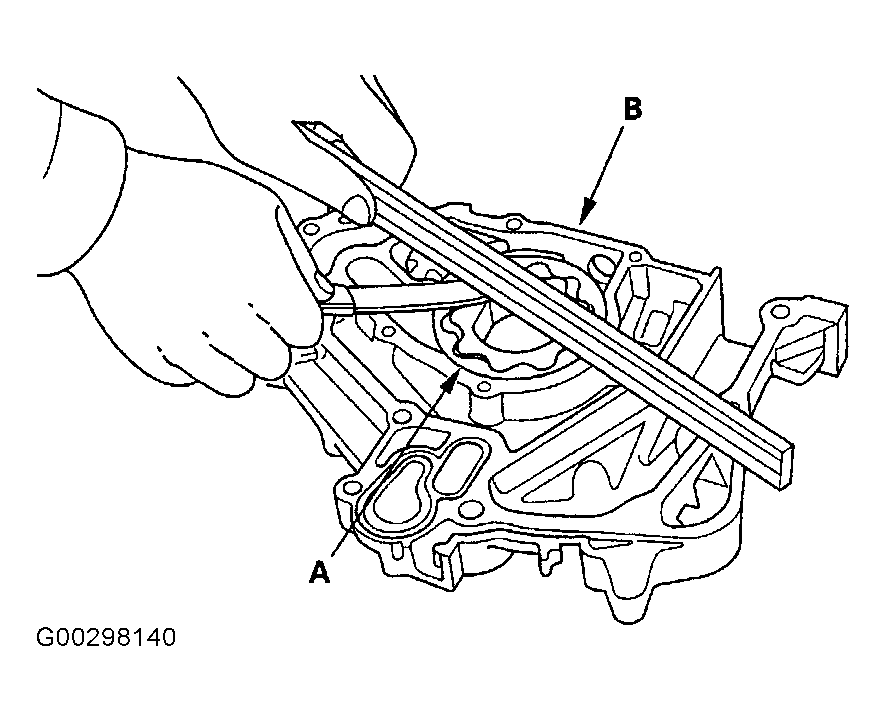

- Check the housing-to-rotor axial clearance between the rotors (A) and pump housing (B). See Fig 2 and HOUSING-TO-ROTOR AXIAL CLEARANCE table. If the housing-to-rotor axial clearance exceeds the service limit, replace the oil pump assembly.
HOUSING-TO-ROTOR AXIAL CLEARANCE
| Application |
Specification - In. (mm) |
| Standard (New) |
.001-.003 (.02-.07) |
| Service Limit |
.005 (.12) |
- Check the housing-to-outer rotor radial clearance between the out rotor (A) and pump housing (B). See Fig 1 and HOUSING-TO-OUTER ROTOR RADIAL CLEARANCE table. If the housing-to-outer rotor radial clearance exceeds the service limit, replace the oil pump assembly.
HOUSING-TO-OUTER ROTOR RADIAL CLEARANCE
| Application |
Specification - In. (mm) |
| Standard (New) |
.006-.007 (.14-.19) |
| Service Limit |
.008 (.20) |
- Inspect both rotors and the pump housing for scoring or other damage. Replace parts if necessary.
- Remove the old oil seals from the oil pump.
- Gently tap in the new oil seals until oil seal driver bottoms on the pump. See Fig 3.
- Apply liquid thread lock to the pump housing screws.
- Reassemble the oil pump.
- Check that the oil pump turns freely.
- Clean and dry the oil pump mating surfaces.
