Stoplight Switch

WARNING: This page is about a different car, the 2002 Acura MDX, 2002 Acura 3.5RL, 2002 Acura 3.2TL, and 2002 Acura 3.2CL. However, it is still accessible from the selected car via links, so may be relevant.
  1. Locate stoplight switch, above brake pedal. Turn ignition switch to OFF position. Using hand pressure, check brake pedal free play. See BRAKE PEDAL HEIGHT & FREE PLAY  . If brake pedal free play is not as specified, go to next step.

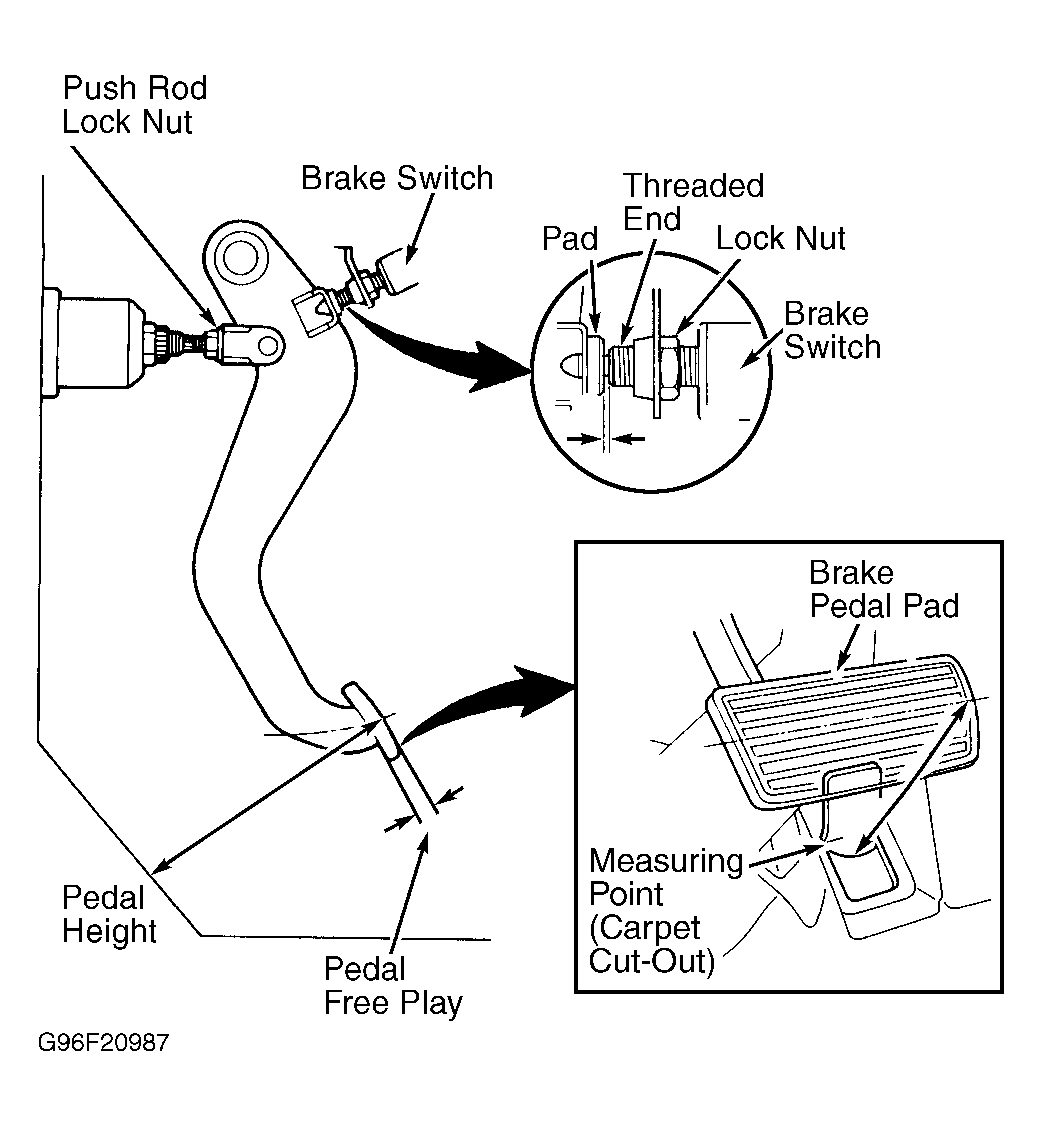

  2. Loosen stoplight switch lock nuts. Turn stoplight switch inward until plunger threaded end is touching pedal arm pad. See Figure . Back off switch 1/4 turn for TL, CL & RL, or 3/4 of a turn for MDX, until clearance between threaded end and pedal end is 0.01" (0.3 mm). On all models, tighten lock nuts. Ensure brakelights go off when pedal is released.
