Oil Pressure Switch

WARNING: This page is about a different car, the 2003 Acura 3.2TL, 2002 Acura 3.2TL, 2001 Acura 3.2TL, 2000 Acura 3.2TL, and 1999 Acura 3.2TL. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the YEL/RED wire (A) from the engine oil pressure switch (B). See Fig 1.
  2. Check for continuity between the positive terminal (C) and the engine (ground). There should be continuity with the engine stopped. There should be no continuity with the engine running.

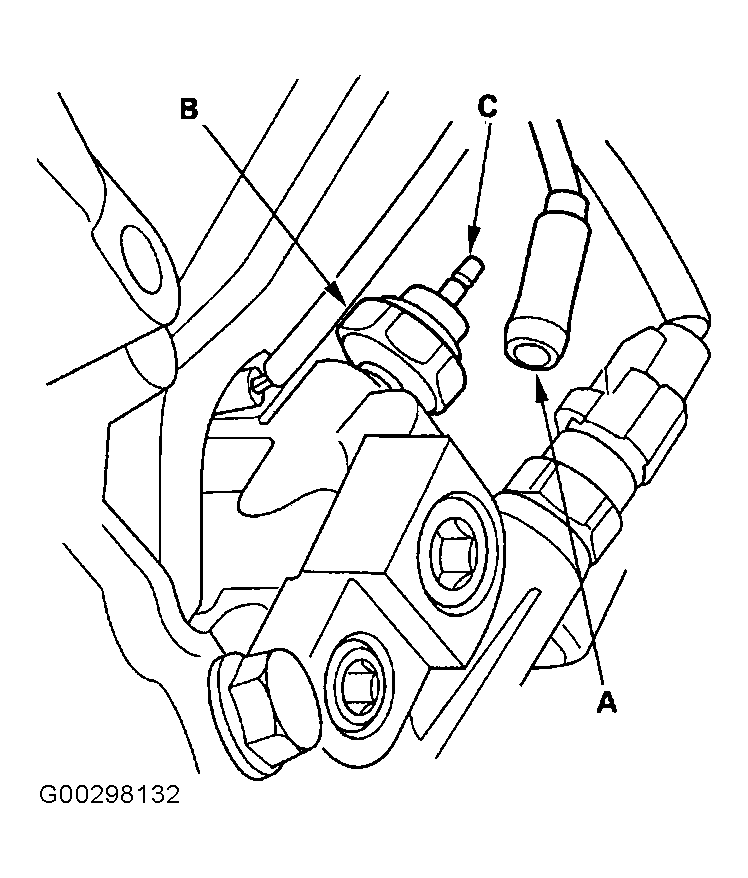

Fig 1: Removing YEL/RED Wire From Engine Oil Pressure Switch
G00298132Courtesy of AMERICAN HONDA MOTOR CO., INC.
