Test A: Abs Indicator Does Not Come On

WARNING: This page is about a different variant/trim than selected.

For test charts, see Fig 1 .

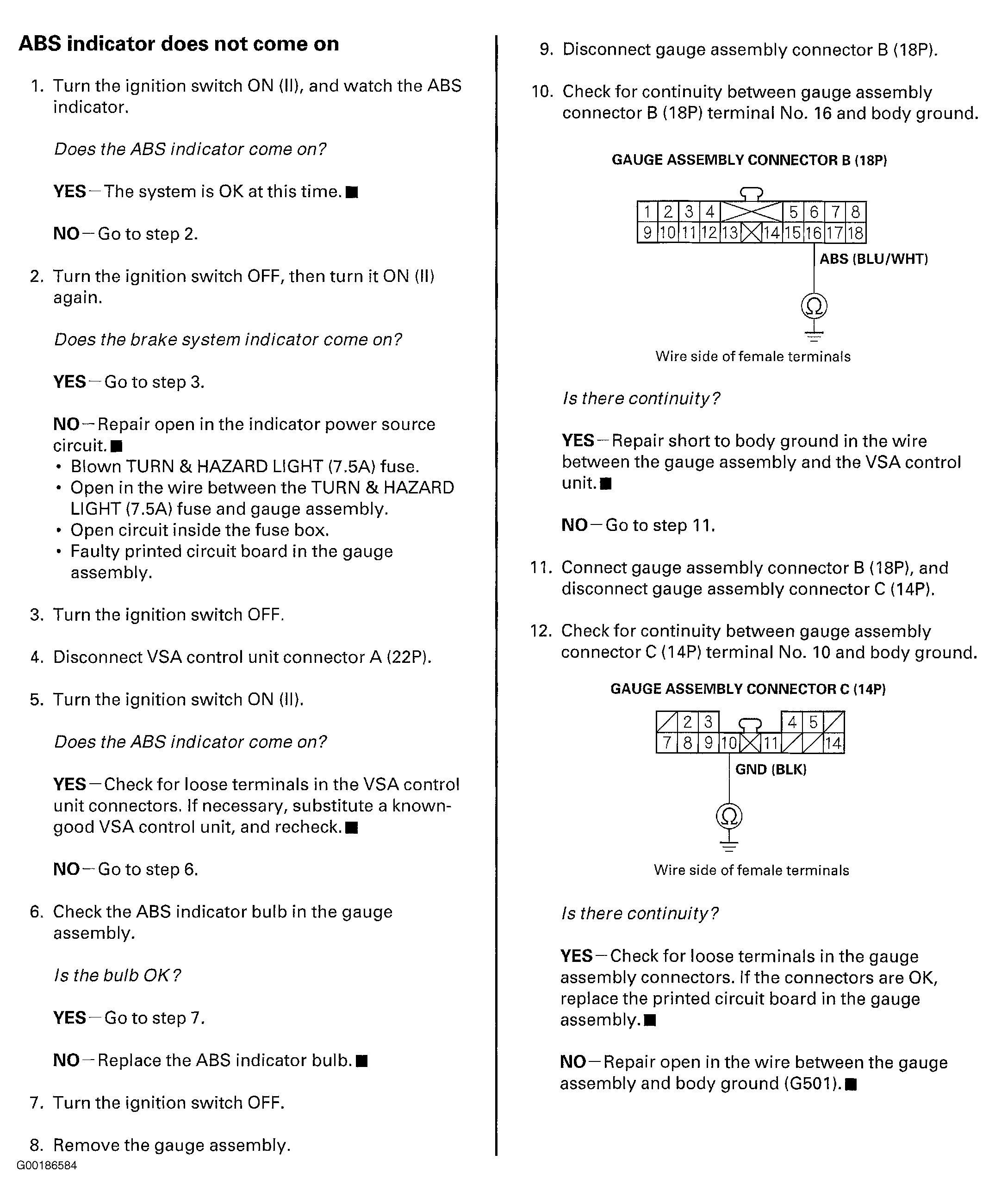

Fig 1: ABS Indicator Does Not Come On Symptom Test Chart

G00186584

Courtesy of AMERICAN HONDA MOTOR CO., INC.
