C104 (Junction Connector) Connector End View
C104 (Junction Connector) Connector End View

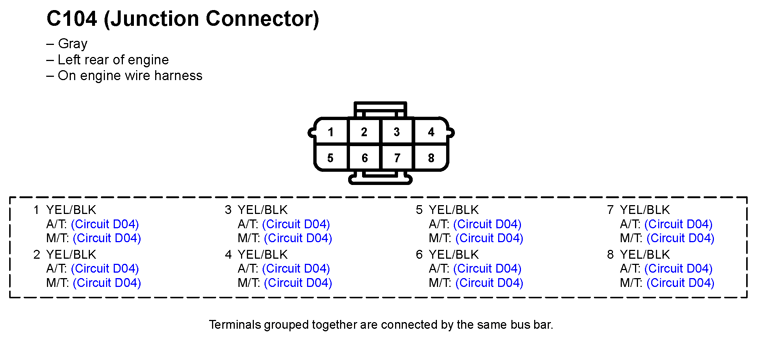

Fig 1: C104 (Junction Connector) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
