C105 (Junction Connector) Connector End View
C105 (Junction Connector) Connector End View

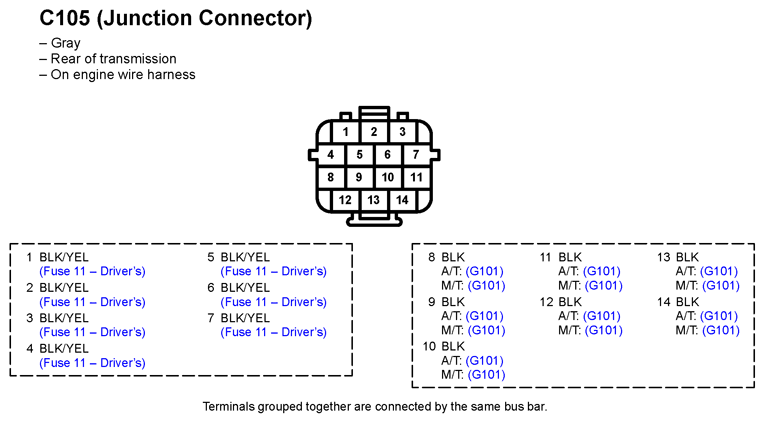

Fig 1: C105 (Junction Connector) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
