C682 ('03 Navigation) Connector End View
C682 ('03 Navigation) Connector End View

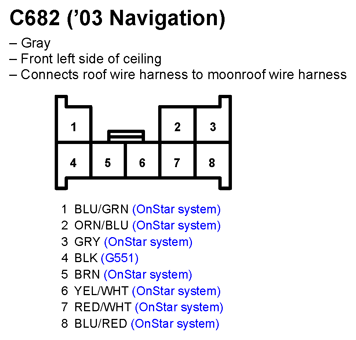

Fig 1: C682 ('03 Navigation) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
