Power Seat Rear Up-Down Motor/Position Sensor, Driver's Connector End View
Power Seat Rear Up-Down Motor/Position Sensor, Driver's Connector End View

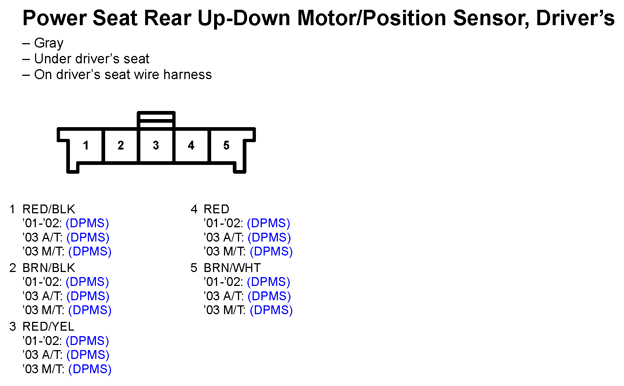

Fig 1: Power Seat Rear Up-Down Motor/Position Sensor, Driver's Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
