Turn Signal/Parking Lights, Left Front or Right Front Connector End View
Turn Signal/Parking Lights, Left Front or Right Front Connector End View

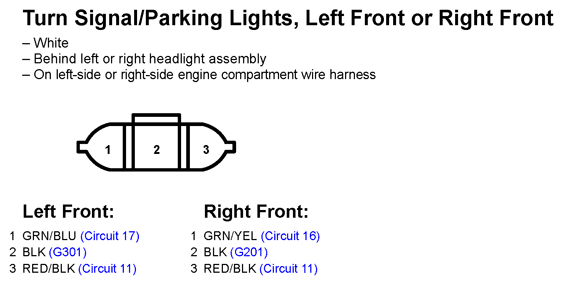

Fig 1: Turn Signal/Parking Lights, Left Front or Right Front Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
