Hoses, Lines, and Pressure Switch Replacement

Note these items during installation:

• Connect each hose to the corresponding line securely until it contacts the stop on the line. Install the clamp or adjustable clamp at the specified distance from the hose end as shown.
• Check all clamps for deterioration or deformation; replace with the clamps new ones if necessary.
• Add the recommended power steering fluid to the specified level on the reservoir and check for leaks.

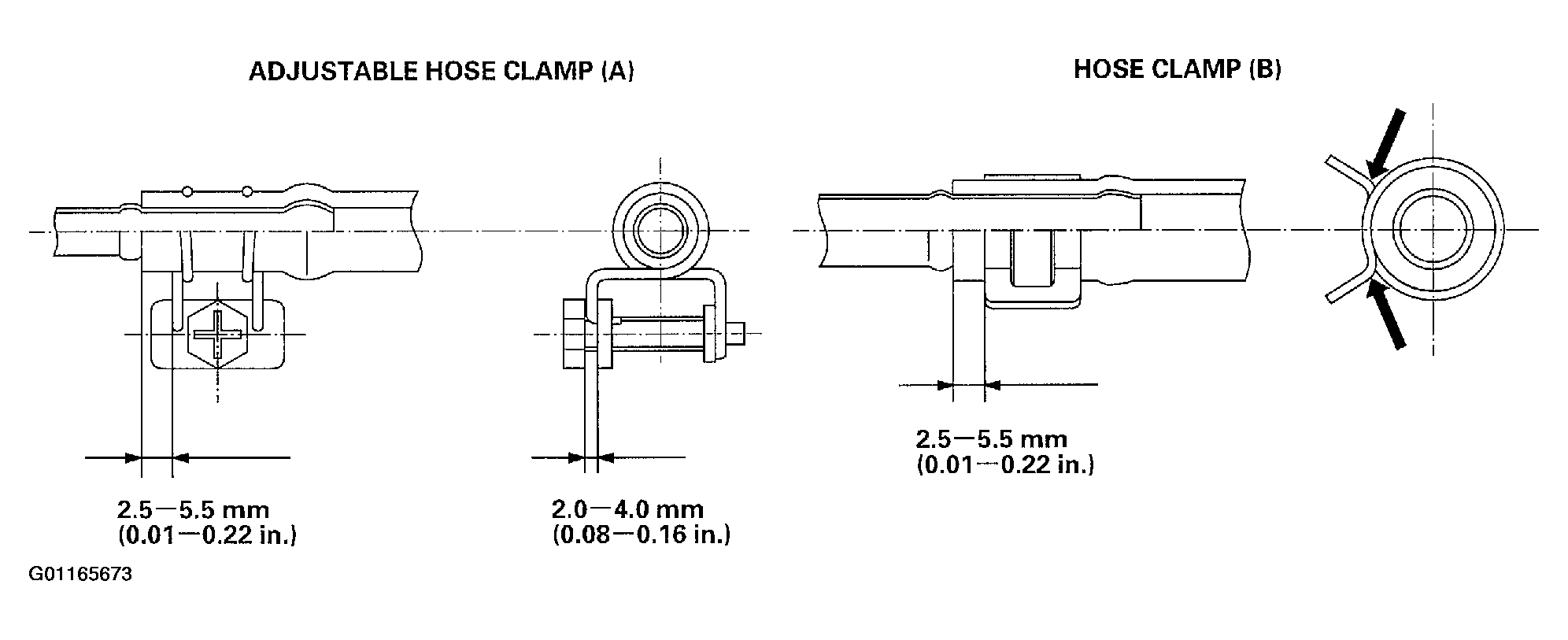

Fig 1: Installing The Clamp Or Adjustable Clamp

Courtesy of AMERICAN HONDA MOTOR CO., INC.

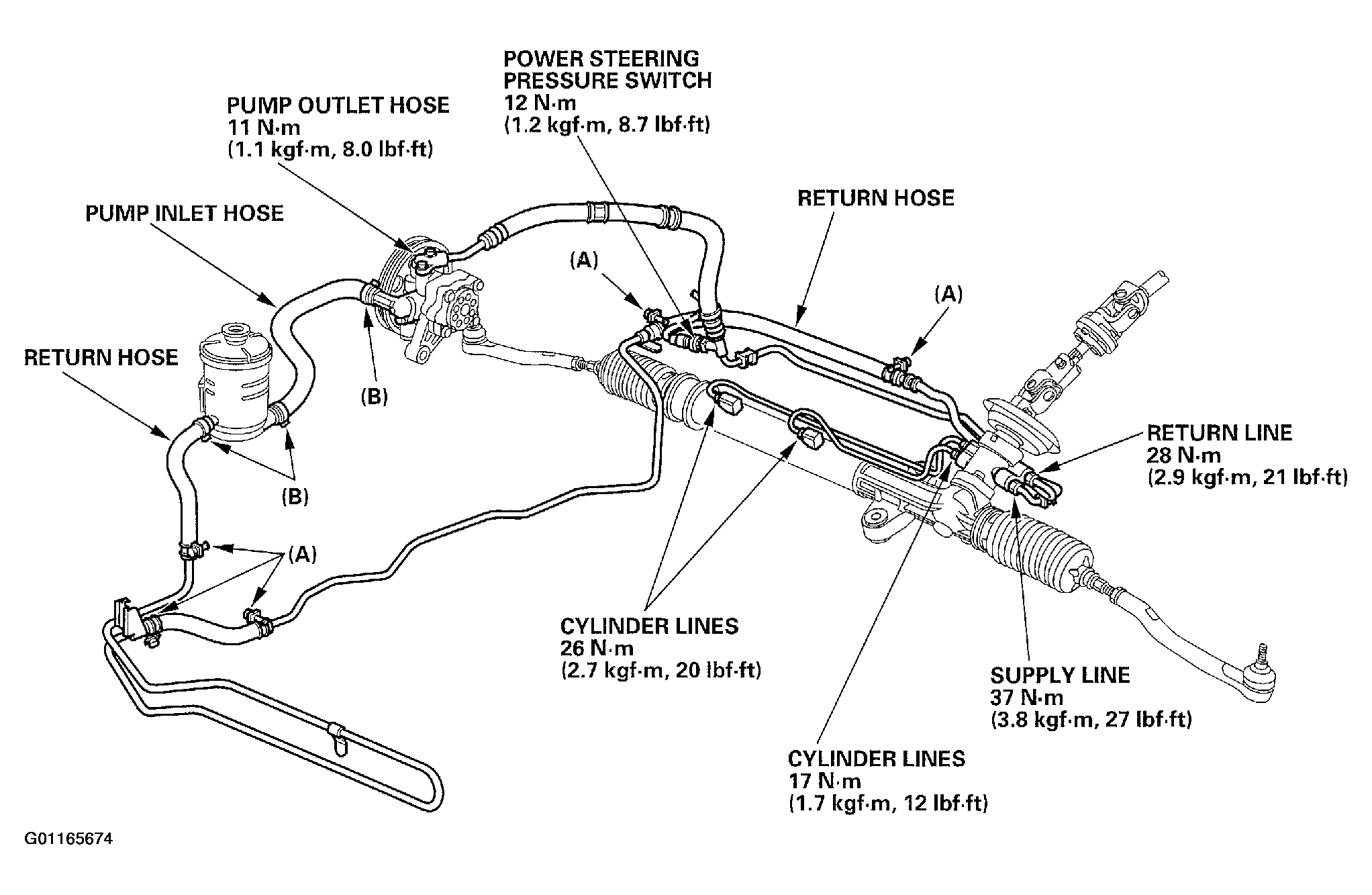

Fig 2: Locating System Clamps, Hoses, Lines, and Pressure Switch

Courtesy of AMERICAN HONDA MOTOR CO., INC.
