Repair and Diagnosis
›
Steering
›
Power Steering System
›
Steering Wheel Disassembly/Reassembly
Steering Wheel Disassembly/Reassembly

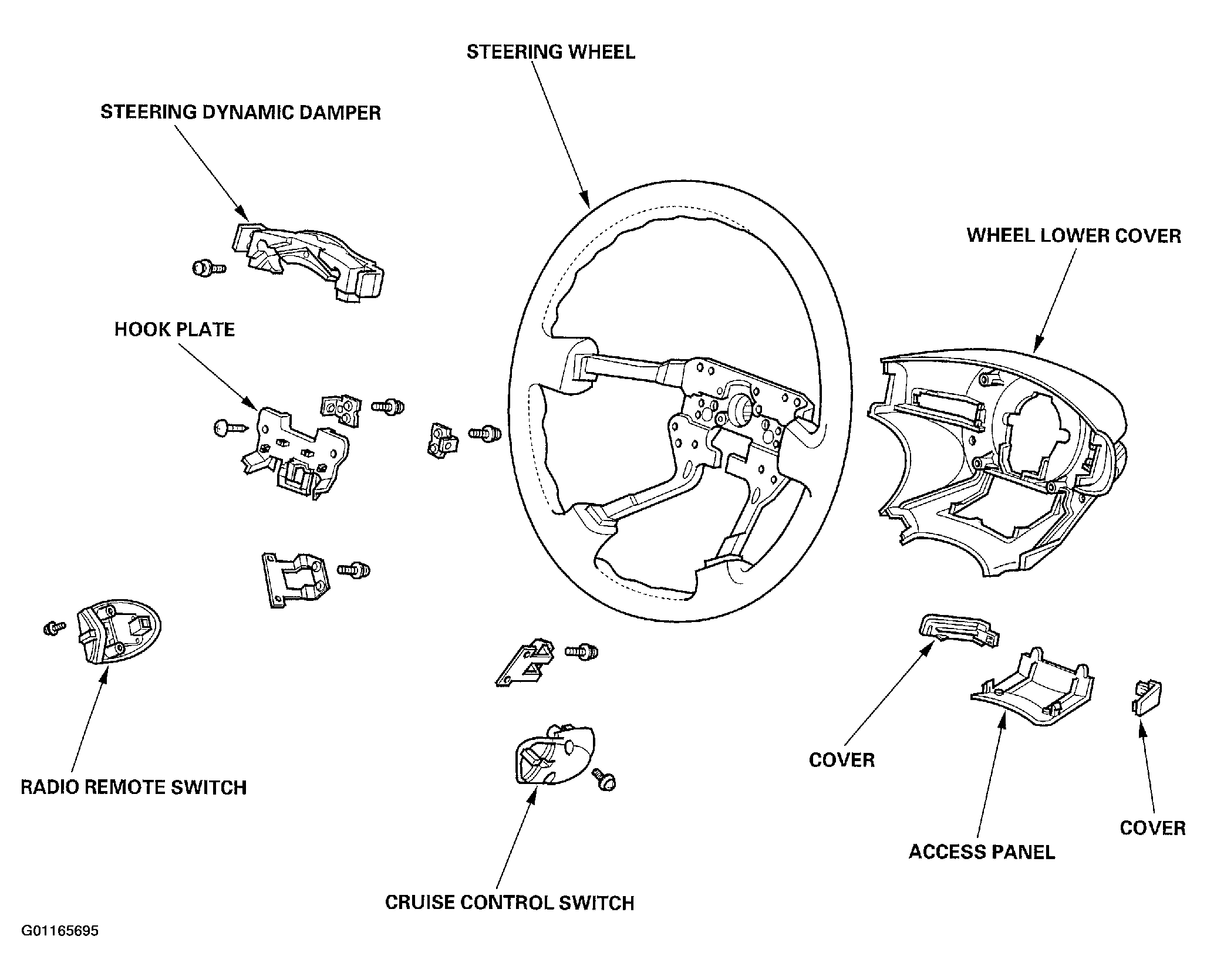

Fig 1: Exploded View Of Steering Wheel Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
