Component Locations

NOTE: See Fig 1 for component locations.

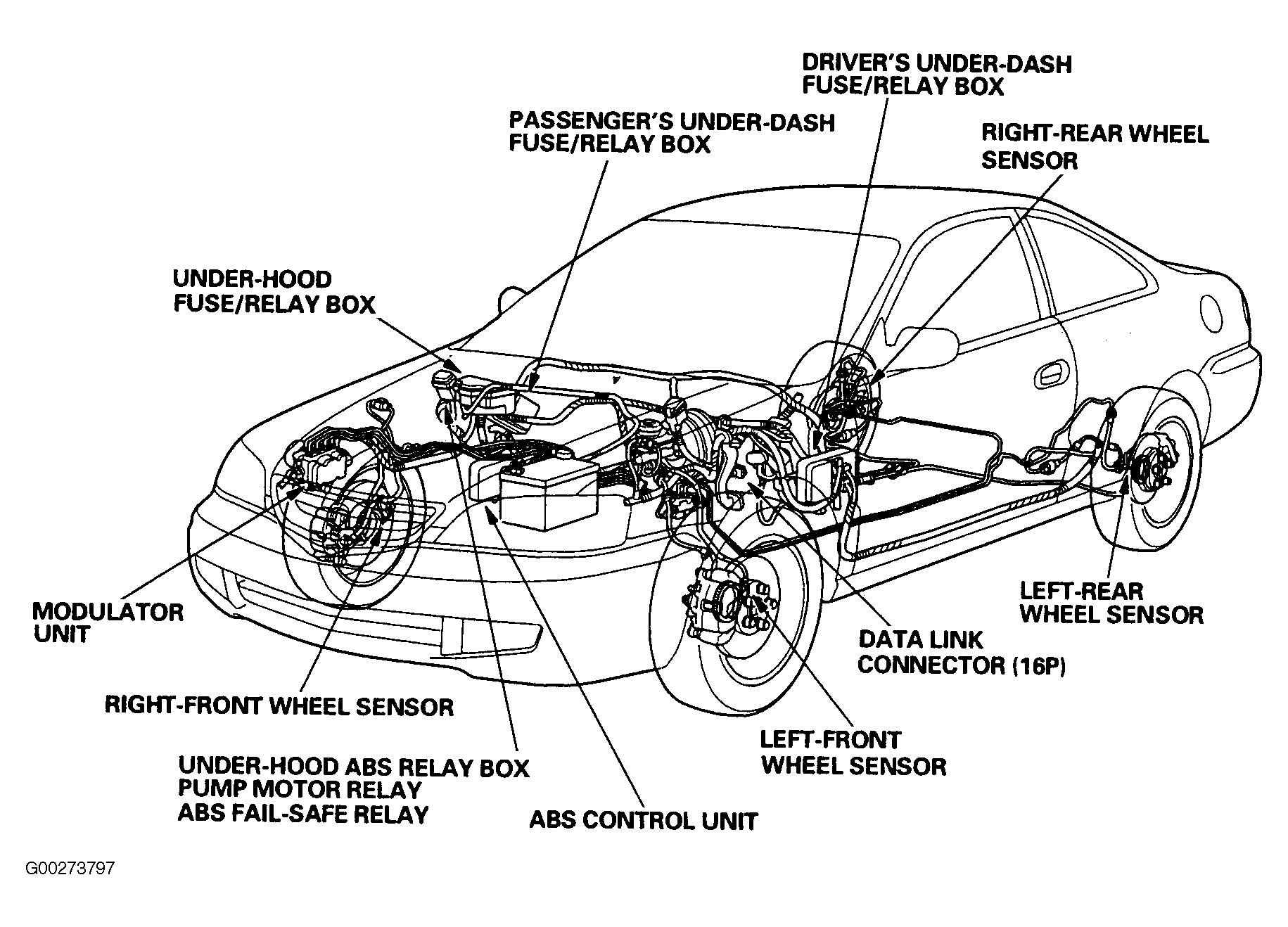

Fig 1: Locating ABS Components
G00273797Courtesy of AMERICAN HONDA MOTOR CO., INC.
